Operating Weight13800 kg
Capacity0.56 m³
Rated Power74 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 13.8 ton |
Bucket Capacity | 0.56 m³ |
ENGINE
Manufacturer | Wei Chai |
Engine Model | WF4.1G100E440 |
Emission | T4 |
Rated Power | 74 kW/2200 rpm |
Max. Torque | 420 N.M/1400~1600 rpm |
Exhaust | 4088 cc |
Quantity - Bore x Stroke | 4-105×118 mm |
Battery | 2-24 V×100 AH |
Motor | 24 V/4.5 kW |
Dynamo | 28 V/55 A |
PERFORMANCE
Swing Speed | 10.6 rpm |
Swing Torque | 40 kN.m |
Travel Speed | 3.6 km/5.6 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 11.5 ton |
Bucket Digging Force (ISO) | 9.9 ton |
Arm Digging Force (ISO) | 7.6 ton |
TANK CAPACITY
Fuel Tank | 290 ℓ |
Hydraulic Tank | 200 ℓ |
Engine Oil | 12 L |
DIMENSIONS
Overall Length | 7880 mm |
Overall Height | 2865 mm |
Overall Height (Cab) | 2877 mm |
Track Ground Contact Length (Wheelbase, Track Width) | 3010 mm |
Track Length | 3778 mm |
Ground Clearance of Counterweights | 903 mm |
Tail Swing Radius | 2559 mm |
Overall Width | 2500 mm |
Track Width | 500 mm |
Gauge | 1990 mm |
Ground Clearance | 422 mm |
WORKING RANGE
Boom Length | 4600 mm |
Arm Length | 2500 mm |
Bucket Capacity | 0.56 m³ |
FEATURES

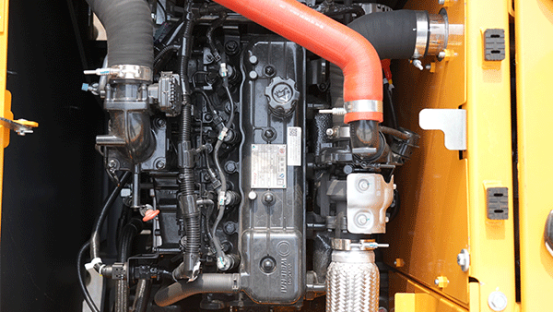

Wei Chai's 4-Cylinder Engine Wp4.1 does not Require Urea
The standard configuration is a Wei Chai engine with a torque of 42 N.m /1400-1600rpm. According to different customer preferences, the Yuchai engine (YCF36125) is selected and the power is increased to 92kW. The torque has been increased to 480 N.m /, providing more powerful performance. The DOC+DPF post-treatment technology is adopted, eliminating the need to burn urea.

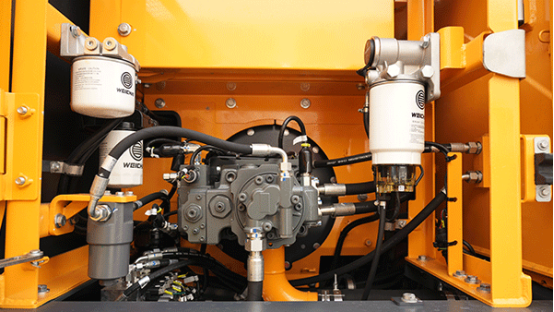

Adopt a Hyundai Custom Main Pump with a Large Flow Rate
With quality guarantee and superior performance, the main pump flow rate has been increased to 2*135l, achieving energy conservation and low consumption, fast operation speed and excellent fuel efficiency.

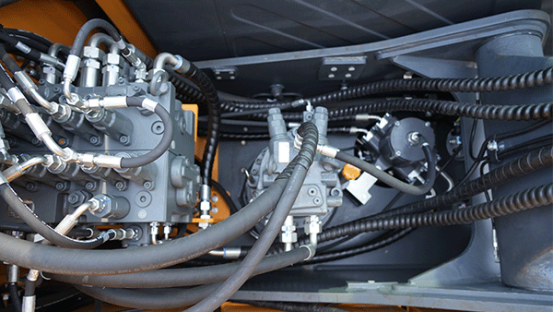

The Hyundai Oil Circuit Design is Equipped With a Main Control Valve of a Well-Known Brand
The large-diameter main control valve is adopted, and the system pressure is 336(370)bar. The digging force is greater, and the earthwork working conditions can also be easily handled.
