Operating Weight5.67 ton
Capacity0.21 m³
Rated Power36.2 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 5.67 ton |
Bucket Capacity | 0.21 m³ |
ENGINE
Emission | T4 |
Engine Model | 4TNV94L |
Rated Power | 36.2 kW/2200 rpm |
Max. Torque | 200.8 N.M/1400 rpm |
HYDRAULIC
Main Pumps Rated Flow | 138.6/2200rpm l/min |
Implement Circuit (Power Boost) | 240 kgf/cm² |
PERFORMANCE
Swing Speed | 9.5 rpm |
Travel Speed | 2.3 km/3.8 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 4.45 ton |
Bucket Digging Force (ISO) | 4.75 ton |
Arm Digging Force (ISO) | 2.83 ton |
TANK CAPACITY
Fuel Tank | 127 ℓ |
Hydraulic Tank | 108 ℓ |
DIMENSIONS
Overall Length | 5940 mm |
Overall Height | 2560 mm |
Overall Width | 1900 mm |
Tail Swing Radius | 1655 mm |
Ground Clearance | 305 mm |
WORKING RANGE
Boom Length | 3000 mm |
Arm Length | 1600 mm |
Max. Digging Reach | 6110 mm |
Max.Digging Depth | 3730 mm |
Max. Digging Height | 5745 mm |
Max. Dumping Height | 4040 mm |
Min. Swing Radius | 2360 mm |
FEATURES

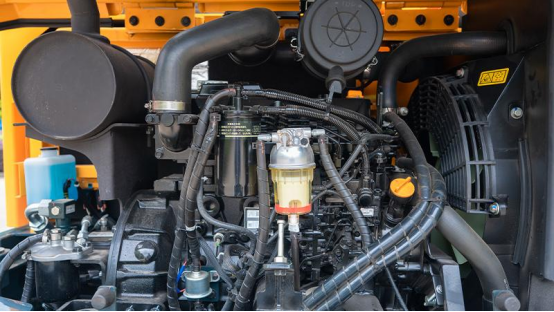

Yanmar Engine 4TNV94L (Tier 4)
The Yanmar engine delivers a power of 36.2 kW (48.5 HP)/2200 rpm, with a maximum torque of 200.8 Nm/1400 rpm. This means the HX55PRO engine operates at maximum power, providing customers with greater and stronger power to accomplish tasks.
Note: The engine is suitable for operation at altitudes below 1200 meters.

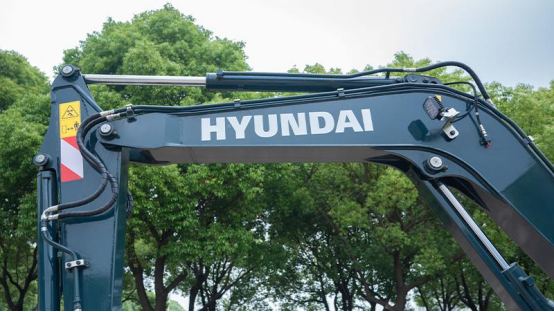

Breaking Pipelines
The HX60PRO comes standard with a breaking pipeline, facilitating breaking operations. Genuine OEM pipelines ensure product quality and extend equipment lifespan.

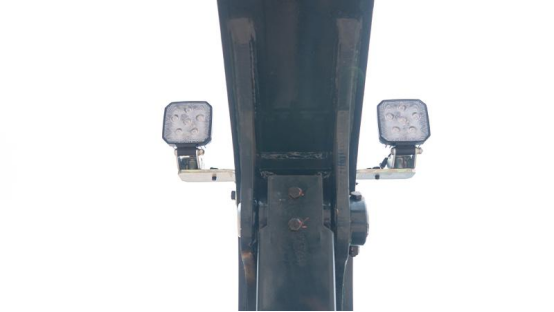

LED Work Lights, Improving Nighttime Operation Efficiency
Equipped with standard LED work lights, enhancing illumination brightness, ensuring nighttime operation safety, and improving overall operational efficiency.

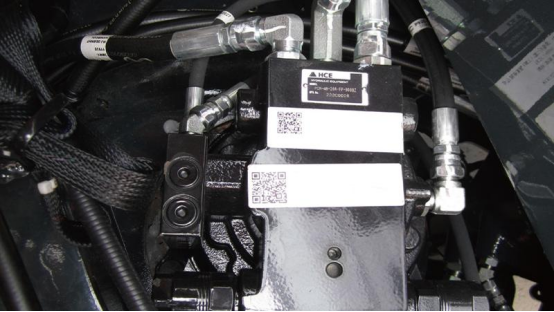

Lifetime Maintenance-Free Swing Motor
Lubricated through hydraulic oil system, eliminating the need for grease lubrication and gear oil, reducing maintenance time and costs.

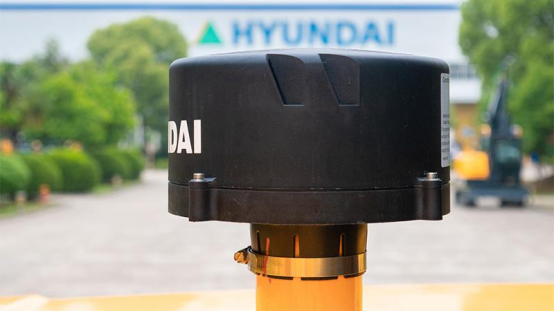

Lifetime Maintenance-Free Air Pre-filter
Utilizing a reversible pre-filter that can self-discharge dust, eliminating the need for regular maintenance.

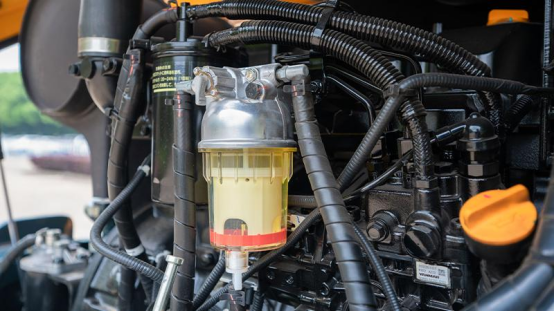

Three-Stage Fuel Filtration System
Enhances equipment compatibility with lower-quality fuels, thereby increasing the engine's lifespan.
