Operating Weight5.85 ton
Capacity0.25 m³
Rated Power36.8 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 5.85 ton |
Bucket Capacity | 0.25 m³ |
ENGINE
Emission | T4 |
Engine Model | WP3.2G50E430 |
Rated Power | 36.8 kW/2200 rpm |
Max. Torque | 210 N.M/1400-1600 rpm |
PERFORMANCE
Swing Speed | 10.5 rpm |
Travel Speed | 2.5 km/4.2 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 5.2 ton |
Bucket Digging Force (ISO) | 40 ton |
Arm Digging Force (ISO) | 28 ton |
TANK CAPACITY
Fuel Tank | 130 ℓ |
Hydraulic Tank | 80 ℓ |
DIMENSIONS
Overall Length | 5670 mm |
Overall Height | 1920 mm |
Overall Width | 2000 mm |
Tail Swing Radius | 1700 mm |
Ground Clearance | 332 mm |
WORKING RANGE
Boom Length | 3000 mm |
Arm Length | 1550 mm |
FEATURES
Load-Sensitive (LS) Hydraulic System
The LS hydraulic system improves operating performance and maintains stable performance under various attachments. The LS hydraulic system provides hydraulic oil flow consistent with the control lever operation, able to proportionally distribute the hydraulic system flow regardless of the load size. This hydraulic system saves oil as it does not require hydraulic flow confluence.

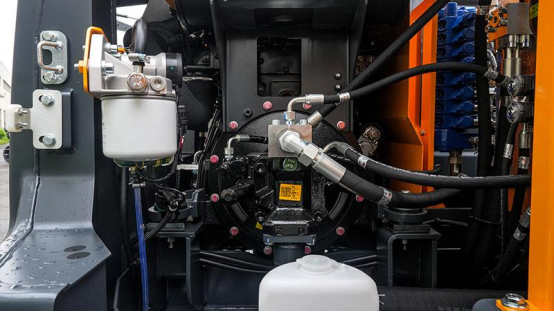

Customized Hyundai Hydraulic Components, Optimized Compound Motion
Equipped with a large-displacement main pump, low-speed high-flow, resulting in faster action speed and higher work efficiency. Optimized main control valve oil circuit design, improving motion coordination.

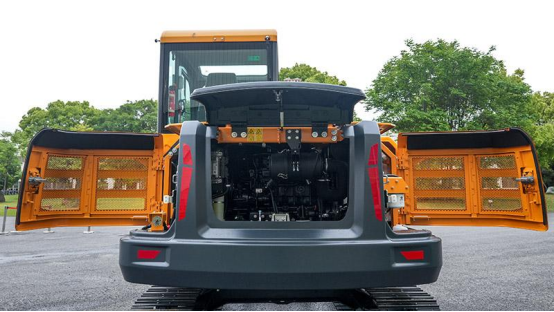

Three-Door Engine Hood Design
Provides larger operating space and more convenient maintenance and repair. Comes standard with a dust net, better protecting the radiator and engine compartment.

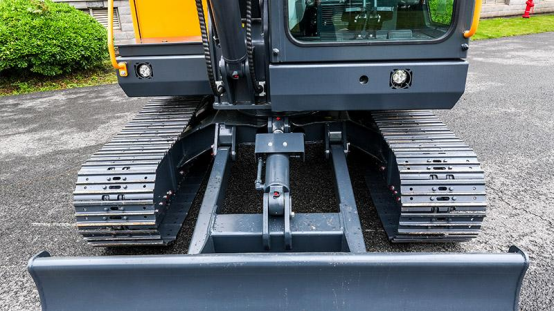

Widened and Lengthened Lower Body
Track length increased from 2535mm to 2550mm. Wheel spacing increased from 1990mm to 2030mm. Track pad width increased from 380mm to 400mm, improving slope operation stability.

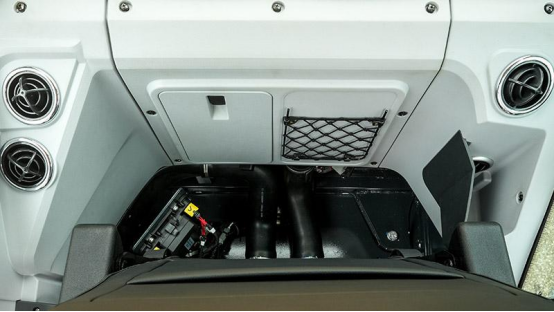

Standard Front and Rear Air Conditioning Vents
Improved air conditioning system, with 5 air conditioning vents, enhancing cooling and heating effects.

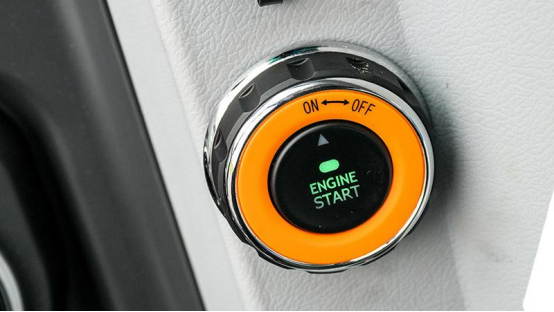

Standard One-Touch Start
Smart start-up, replacing traditional key, improving operational convenience.
