Operating Weight5.65 ton
Capacity0.18 m³
Rated Power36.2 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 5.65 ton |
Bucket Capacity | 0.18 m³ |
ENGINE
Emission | T4 |
Engine Model | 4TNV94L |
Rated Power | 36.2 kW/2200 rpm |
Max. Torque | 200.8 N.M/1400 rpm |
HYDRAULIC
Main Pumps Rated Flow | 144.9+18.4/2300 l/min |
Implement Circuit (Power Boost) | 240 kgf/cm² |
PERFORMANCE
Swing Speed | 11.76 rpm |
Travel Speed | 25.7 km hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 3.2 ton |
Bucket Digging Force (ISO) | 4.66 ton |
Arm Digging Force (ISO) | 3.14 ton |
TANK CAPACITY
Fuel Tank | 127 ℓ |
Hydraulic Tank | 70 ℓ |
DIMENSIONS
Overall Length | 6120 mm |
Overall Height | 2880 mm |
Overall Width | 1925 mm |
Tail Swing Radius | 1650 mm |
Ground Clearance | 255 mm |
WORKING RANGE
Boom Length | 3000 mm |
Arm Length | 1600 mm |
Max. Digging Reach | 6150 mm |
Max.Digging Depth | 3465 mm |
Max. Digging Height | 6040 mm |
Max. Dumping Height | 4305 mm |
Min. Swing Radius | 2380 mm |
FEATURES

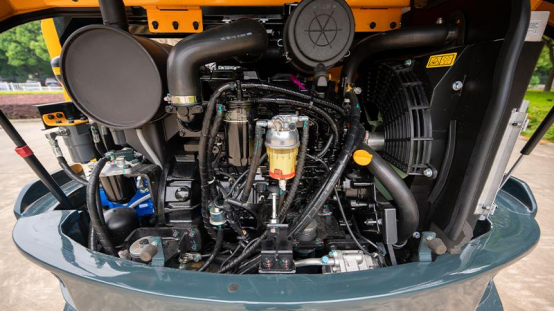

Yanmar Engine 4TNV94L (No DPF) (Tier 4)
The engine delivers a power of 36.2 kW (48.5 HP)/2200 rpm, with a maximum torque of 200.8 Nm/1400 rpm. The engine body is coated to improve wear resistance and extend lifespan. With no Diesel Particulate Filter (DPF), there is no need for regular maintenance, reducing user operation and maintenance costs.

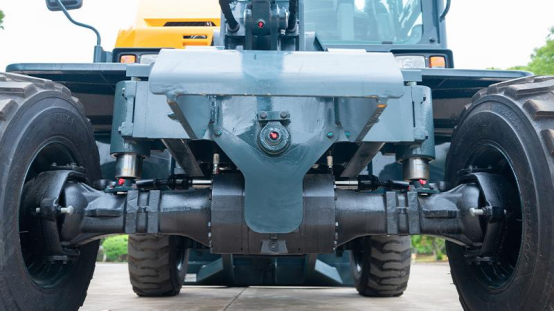

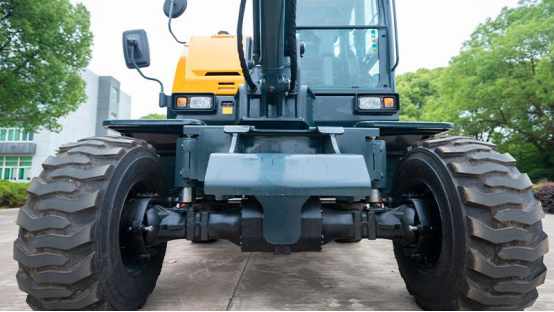

DANA High-Quality Axles and Transmission
Low fuel consumption travel mode (S mode) allows for a maximum travel speed of 25.7 km/h. This ensures optimal travel performance and speed. The optimized travel acceleration ensures convenient equipment transition and flexible movement.

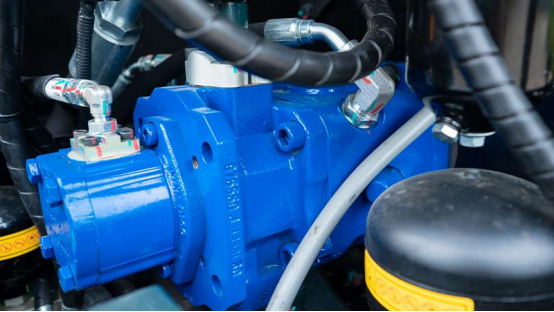

Rexroth Electronic Control Main Pump
By optimizing the control of P1 pump flow, the flow control is more precise, with faster response times, achieving improved fuel efficiency and maneuverability.
Automatic Swing
The swing cylinder has an automatic balancing function, ensuring the stability and safety of the equipment during operation.

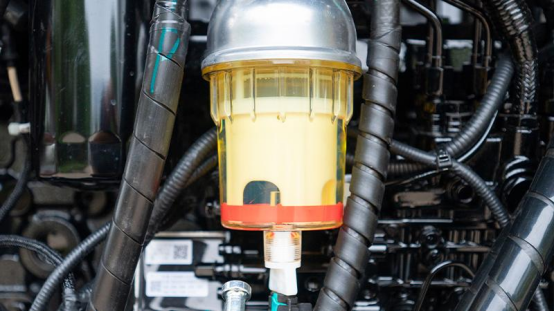

Three-stage Fuel Filtration System with Enhanced Fuel-Water Separator
The refined fuel filtration system improves filtering efficiency compared to Tier 3 standards, enhancing the equipment's adaptability to poor-quality fuel and extending the engine's lifespan.

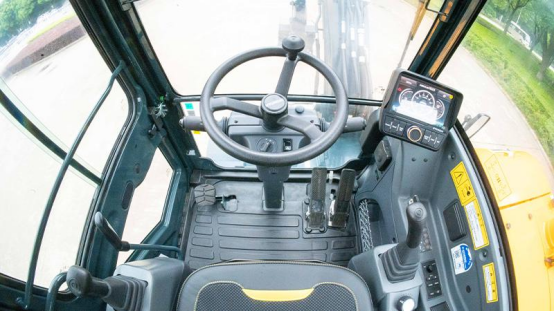

Cab
A spacious cab that integrates comfort, convenience, and entertainment. The ergonomic design of the control handles ensures ease of use and flexibility.
