Operating Weight12.5 ton
Capacity0.52 m³
Rated Power89 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 12.5 ton |
Bucket Capacity | 0.52 m³ |
ENGINE
Emission | T4 |
Engine Model | F4.5 |
Rated Power | 89 kW/2200 rpm |
Max. Torque | 51(500) N.M/1300 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2*114+26.2 l/min |
Implement Circuit (Power Boost) | 330(360) kgf/cm² |
PERFORMANCE
Swing Speed | 10.95 rpm |
Travel Speed | 3.13 km/5.54 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 13.5 ton |
Bucket Digging Force (ISO) | 8.87(9.68) ton |
Arm Digging Force (ISO) | 6.18(6.74) ton |
TANK CAPACITY
Fuel Tank | 270 ℓ |
Hydraulic Tank | 210 ℓ |
DIMENSIONS
Overall Length | 7820 mm |
Overall Height | 2700 mm |
Overall Width | 2540 mm |
Tail Swing Radius | 2335 mm |
Ground Clearance | 425 mm |
WORKING RANGE
Boom Length | 4600 mm |
Arm Length | 2260 mm |
Max. Digging Reach | 8100 mm |
Max.Digging Depth | 5350 mm |
Max. Digging Height | 8325 mm |
Max. Dumping Height | 5865 mm |
Min. Swing Radius | 2530 mm |
FEATURES

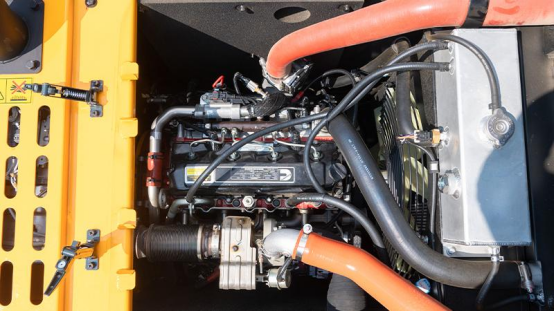

Cummins F4.5 Engine Complies with Tier 4 Emission Standards
The Cummins F4.5 is a Tier 4, 4-cylinder engine with an added DPF aftertreatment system. It features a compact design, does not require urea, and boasts low maintenance costs. In the 1300rpm-1500rpm range, the F4.5 engine delivers higher torque and optimal fuel efficiency.

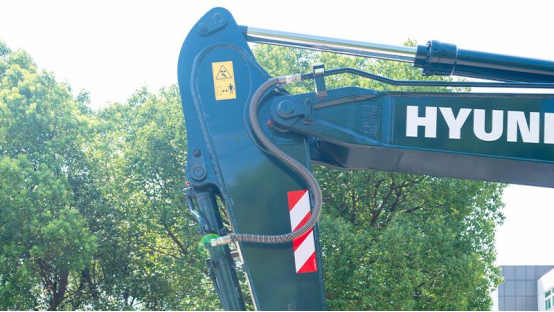

Enhanced Working Device, Expanded Operating Range
Bucket Capacity: 0.45m³ → 0.52m³
Boom Length: 4.3m → 4.6m
This improvement enhances the durability and lifespan of the upper structure and working device. It also increases the flexibility, durability, and wear resistance of the bushing. Material and design optimizations for the bucket have improved durability and wear resistance.

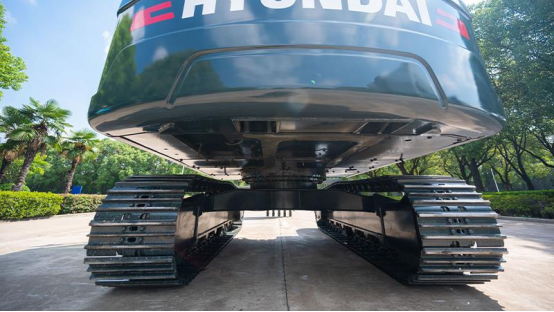

Tracks
Extended tracks for better stability, suitable for various attachments (e.g., Forest Equipment, Breaker).
Track length: 3430mm → 3485mm
