Operating Weight7.34 ton
Capacity0.32 m³
Rated Power36.2 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 7.34 ton |
Bucket Capacity | 0.32 m³ |
ENGINE
Emission | T4 |
Engine Model | 4TNV94L |
Rated Power | 36.2 kW/2200 rpm |
Max. Torque | 200.8 N.M/1400 rpm |
HYDRAULIC
Main Pumps Rated Flow | 158.4/2200rpm l/min |
Implement Circuit (Power Boost) | 280 kgf/cm² |
PERFORMANCE
Swing Speed | 10.5 rpm |
Travel Speed | 2.43 km/3.95 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 6.75 ton |
Bucket Digging Force (ISO) | 5.04 ton |
Arm Digging Force (ISO) | 3.52 ton |
TANK CAPACITY
Fuel Tank | 142 ℓ |
Hydraulic Tank | 128 ℓ |
DIMENSIONS
Overall Length | 6090 mm |
Overall Height | 2710 mm |
Overall Width | 2260 mm |
Tail Swing Radius | 1725 mm |
Ground Clearance |
|
WORKING RANGE
Boom Length | 3700 mm |
Arm Length | 1670 mm |
Max. Digging Reach | 6335 mm |
Max.Digging Depth | 3620 mm |
Max. Digging Height | 7175 mm |
Max. Dumping Height | 5080 mm |
Min. Swing Radius | 1855 mm |
FEATURES

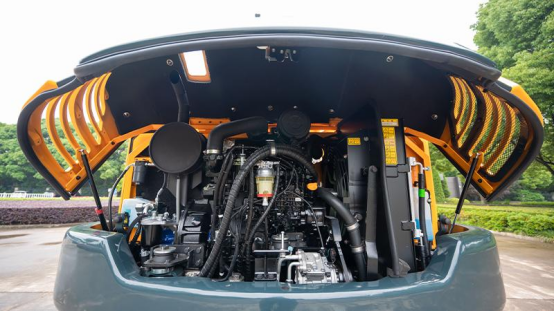

Yanmar Engine 4TNV94L (No DPF) (Tier 4)
The engine delivers a power of 36.2 kW (48.5 HP)/2200 rpm, with a maximum torque of 200.8 Nm/1400 rpm. The engine body is coated to improve wear resistance and extend lifespan. With no Diesel Particulate Filter (DPF), there is no need for regular maintenance, reducing user operation and maintenance costs.

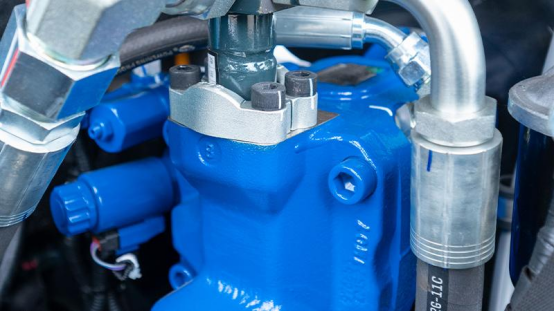

Rexroth Electronic Control Main Pump
The main pump has a maximum flow rate of 158.4 lpm, with single-pump oil supply, ensuring independent and fast movements. The flow control is more precise and efficient, avoiding unnecessary flow waste and achieving fuel savings.
LS Load-Sensitive System
The LS hydraulic system provides hydraulic oil consistent with the handle's operating range. It can proportionally allocate hydraulic system flow regardless of the load size. This hydraulic system saves fuel as it doesn't require hydraulic convergence. Increased hydraulic oil flow during walking improves traction force and walking speed.

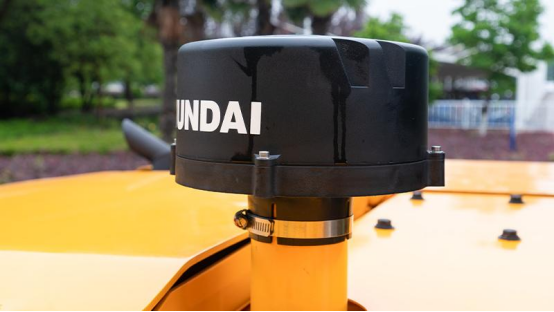

Maintenance-Free Air Pre-filter
Utilizing a reversible pre-filter that can self-discharge dust, eliminating the need for regular maintenance.

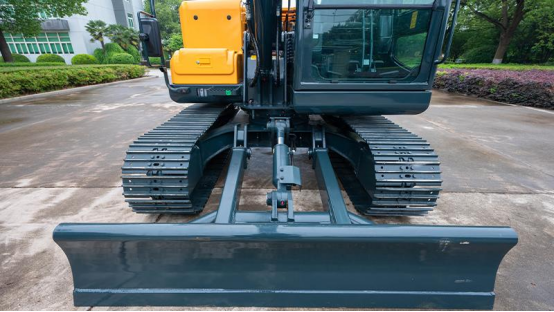

Improved Stability of the Dozer Blade
Compared to industry standards, the blade is taller and made of thicker material, resulting in a more effective angled leveling effect.

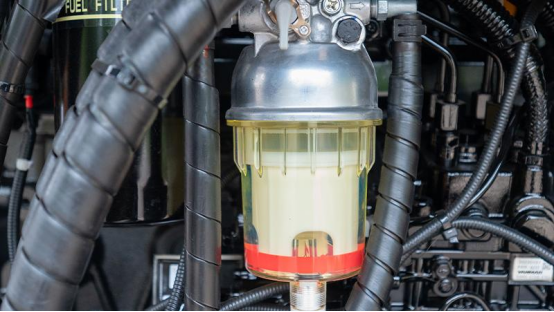

Three-stage Fuel Filtration System
Enhances equipment compatibility with lower-quality fuels, thereby increasing the engine's lifespan.
