Operating Weight14.3 ton
Capacity0.58 m³ (optional 0.65 m³)
Rated Power125 kW/2000 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 14.3 ton |
Bucket Capacity | 0.58 m³ (optional 0.65 m³) |
ENGINE
Emission | T4 |
Engine Model | B7 |
Rated Power | 125 kW/168 hp/170 ps/2000 rpm |
Max. Torque | 746 N.M/1200 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2*160/2000 l/min |
Implement Circuit (Power Boost) | 350(380) kgf/cm² |
PERFORMANCE
Swing Speed | 11.4 rpm |
Travel Speed | 10.8 km/40.5 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 8 ton |
Bucket Digging Force (ISO) | 10.51(11.41) ton |
Arm Digging Force (ISO) | 8.91(9.66) ton |
TANK CAPACITY
Fuel Tank | 270 ℓ |
Hydraulic Tank | 114(210) ℓ |
DIMENSIONS
Overall Length | 7850 mm |
Overall Height | 3090 mm |
Overall Width | 2510 mm |
Tail Swing Radius | 2345 mm |
Ground Clearance | 340 mm |
WORKING RANGE
Boom Length | 4600 mm |
Arm Length | 2100 mm |
Max. Digging Reach | 7920 mm |
Max.Digging Depth | 4820 mm |
Max. Digging Height | 8500 mm |
Max. Dumping Height | 6070 mm |
Min. Swing Radius | 2655 mm |
FEATURES

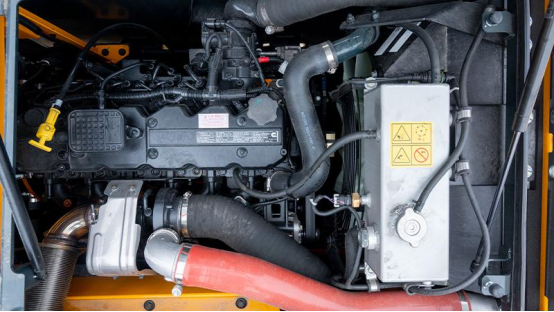

Cummins B7 Engine Complies with Tier 4 Emission Standards
Built on the reliable and proven B series platform, the Cummins B7 engine delivers strong power, easy maintenance, durability, extended maintenance intervals, and improved fuel efficiency, effectively saving operational costs. Using low-sulfur fuel, it employs DOC+DPF+SCR after-treatment technology for Tier 4 emission control.

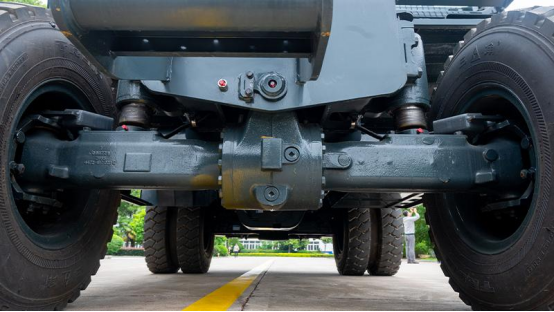

International Famous Brand Axles and Transmission
Equipped with well-proven and highly recognized ZF axles and transmission, featuring standard walking and merging functions to enhance equipment's climbing capability and ensure outstanding travel performance.

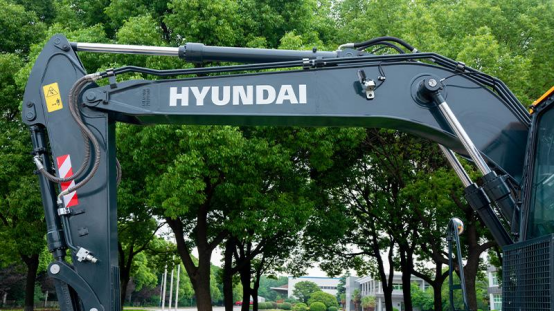

Standard Breaking Pipellines
The standard original high-quality breaking pipellines are well-matched overall, eliminating the need for users to install additional components.

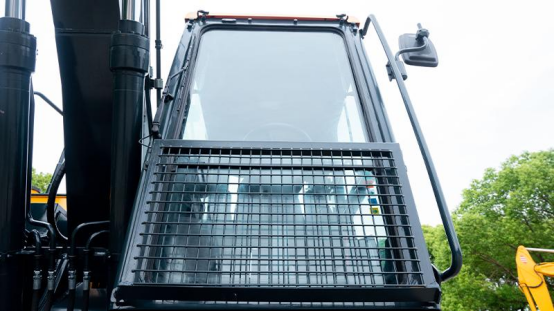

Standard Front Lower Window Guard
Prevents splashing of debris, ensuring the safety of personnel and equipment.

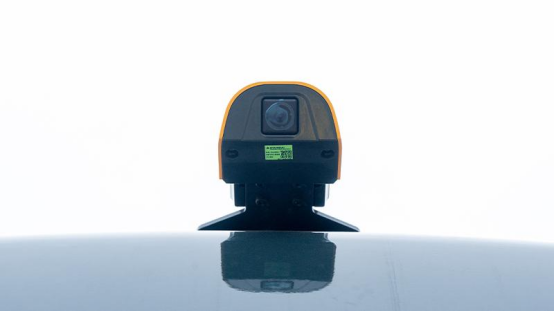

Standard Rear View Camera
Equipped with a rear-view camera as standard.

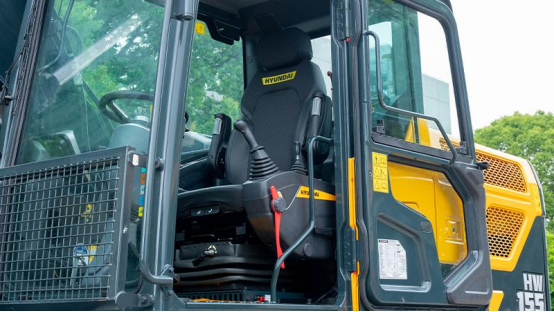

Standard Emergency Stop Switch
A one-key emergency stop switch is located below the seat, allowing for emergency operations without entering the cab, ensuring the safety of personnel and equipment.
