Operating Weight7.68 ton
Capacity0.28 m³
Rated Power36.8 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 7.68 ton |
Bucket Capacity | 0.28 m³ |
ENGINE
Emission | T4 |
Engine Model | WP3.2G50E436 |
Rated Power | 36.8 kW/2200 rpm |
Max. Torque | 240 N.M/1200-1400 rpm |
PERFORMANCE
Swing Speed | 11.5 rpm |
Travel Speed | 2.8 km/4.0 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 7.5 ton |
Bucket Digging Force (ISO) | 56 ton |
Arm Digging Force (ISO) | 38 ton |
TANK CAPACITY
Fuel Tank | 134 ℓ |
Hydraulic Tank | 90 ℓ |
DIMENSIONS
Overall Length | 6310 mm |
Overall Height | 3550 mm |
Overall Width | 2250 mm |
Tail Swing Radius | 1930 mm |
Ground Clearance | 367 mm |
WORKING RANGE
Boom Length | 3722 mm |
Arm Length | 1620 mm |
FEATURES
Load-Sensitive (LS) Hydraulic System
The LS hydraulic system improves operating performance and maintains stable performance under various attachments. The LS hydraulic system provides hydraulic oil flow consistent with the control lever operation, able to proportionally distribute the hydraulic system flow regardless of the load size. This hydraulic system saves oil as it does not require hydraulic flow confluence.

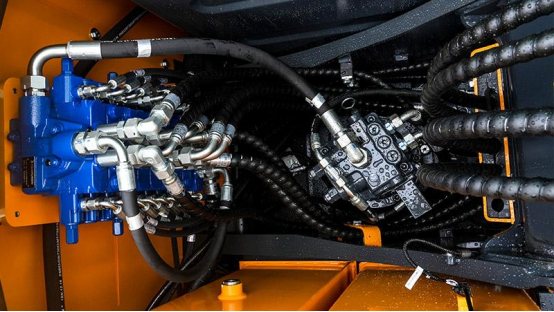

Customized Modern Hydraulic Components, Optimized Compound Motion
Equipped with a large-displacement main pump, low-speed high-flow, resulting in faster action speed and higher work efficiency. Optimized main control valve oil circuit design, improving motion coordination.

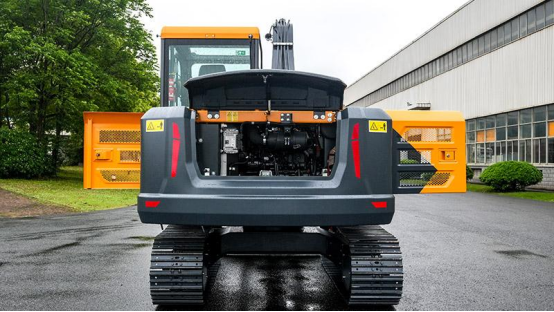

Three-Door Engine Hood Design
Provides larger operating space and more convenient maintenance and repair. Comes standard with a dust net, better protecting the radiator and engine compartment.
