Operating Weight19.9 ton
Capacity0.9 m³
Rated Power125 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 19.9 ton |
Bucket Capacity | 0.9 m³ |
ENGINE
Emission | T4 |
Engine Model | F4.5 |
Rated Power | 125 kW/168 hp/170 ps/2200 rpm |
Max. Torque | 670 N.M/1300 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×228 l/min |
Implement Circuit (Power Boost) | 350 kgf/cm² |
PERFORMANCE
Swing Speed | 10.54 rpm |
Travel Speed | 5.1 km/3.3 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 22.6 ton |
Bucket Digging Force (ISO) | 15.4 ton |
Arm Digging Force (ISO) | 11.6 ton |
TANK CAPACITY
Fuel Tank | 395 ℓ |
Hydraulic Tank | 160(280) ℓ |
DIMENSIONS
Overall Length | 9525 mm |
Overall Height | 3010 mm |
Overall Width | 2800 mm |
Tail Swing Radius | 2890 mm |
Ground Clearance | 470 mm |
WORKING RANGE
Boom Length | 5680 mm |
Arm Length | 2700 mm |
Max. Digging Reach | 9760 mm |
Max.Digging Depth | 6520 mm |
Max. Digging Height | 9450 mm |
Max. Dumping Height | 6640 mm |
Min. Swing Radius | 3730 mm |
FEATURES

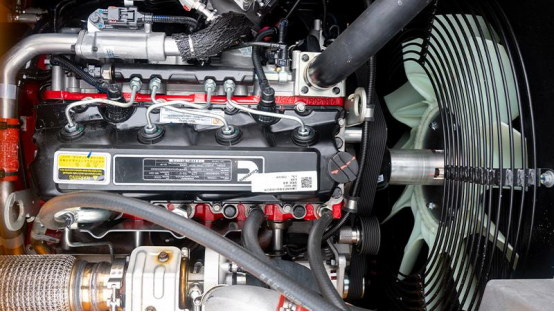

Cummins F4.5 Engine Complies with Tier 4 Emission Standards
Built on the proven and reliable F-series platform, the Cummins F4.5 engine delivers robust power, easy maintenance, extended service intervals, and higher fuel efficiency. It effectively reduces operational costs for customers.

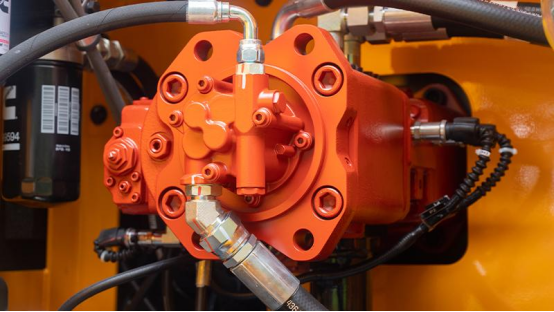

Utilizing Imported Brand Main Pump
Ensuring quality and superior performance, the main pump boasts a large flow rate of 2*228 lpm. Equipped with the VPC system, the electronic control main pump achieves energy efficiency, resulting in faster operation speeds.

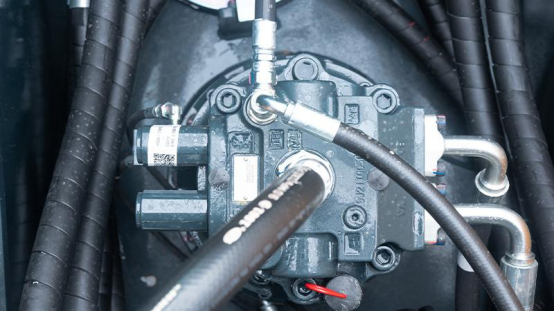

Hyundai In-House Rotation System for Enhanced Durability and Efficiency
Subjected to rigorous field tests totaling 10,000 hours, the in-house rotation system demonstrates exceptional durability and performance, with a notable 10% increase in efficiency.

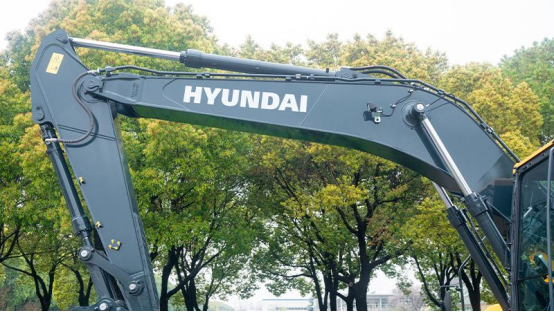

Heavy-Duty Working Device
Enhances the durability and lifespan of the upper structure and working device. Improved flexibility, durability, and wear resistance of the bushings. Featuring a 5.68m long arm and 2.7m standard boom, significantly boosting loading efficiency.

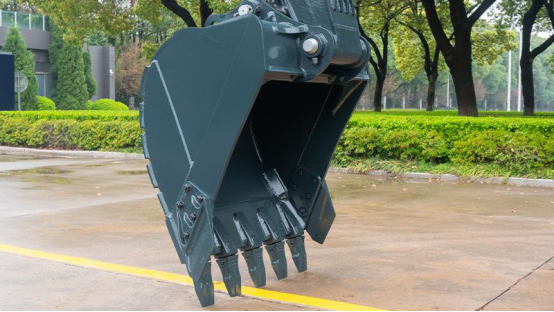

Bucket
Equipped with a 0.9m³ wide and shallow bucket, specifically designed for earthmoving. Prevents material adhesion, ensuring convenient and efficient loading and unloading.

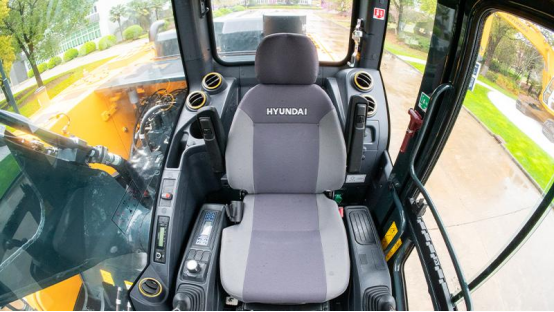

Cabin
The new HX series multi-functional cabin provides a broader field of vision and more spacious surroundings. Operators experience ample visibility and foresight during construction operations. The cabin offers improved sealing and reduced noise levels, effectively mitigating operator fatigue and enhancing work efficiency.
