Operating Weight21.43 ton
Capacity1 m³
Rated Power129 kW/2000 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 21.43 ton |
Bucket Capacity | 1.0 m³ |
ENGINE
Manufacturer | Wei Chai |
Engine Model | WP4.6NG175E442 |
Emission | T4 |
Rated Power | 129 kW/2000 rpm |
Max. Torque | 700 N.M/1400~1600 rpm |
Exhaust | 4580 cc |
Quantity - Bore x Stroke | 4-108×125 mm |
Battery | 2-24 V×120 AH |
Motor | 24 V/4.5 kW |
PERFORMANCE
Swing Speed | 10.6 rpm |
Swing Torque | 85 kN.m |
Travel Speed | 3.2 km/5.1 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 21.8 ton |
Bucket Digging Force (ISO) | 15.5 ton |
Arm Digging Force (ISO) | 11.1 ton |
TANK CAPACITY
Fuel Tank | 400 ℓ |
Hydraulic Tank | 165/256 ℓ |
Engine Oil | 19 L |
DIMENSIONS
Overall Length | 9765 mm |
Overall Height | 3080 mm |
Overall Height (Cab) | 2980 mm |
Track Ground Contact Length (Wheelbase, Track Width) | 3370 mm |
Track Length | 4175 mm |
Ground Clearance of Counterweights | 1064 mm |
Tail Swing Radius | 3080 mm |
Overall Width | 2800 mm |
Track Width | 600 mm |
Gauge | 2200 mm |
Ground Clearance | 472 mm |
WORKING RANGE
Boom Length | 5675 mm |
Arm Length | 2920 mm |
Bucket Capacity | 1.0 m³ |
FEATURES

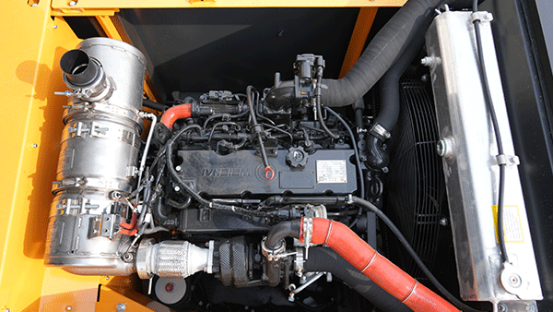

The 4-Cylinder Engine Wp4.6 does not Require Urea
It adopts a high-torque Weichai engine, with the torque increased to 700 N.m /1400-1600 RPM, providing more powerful performance. The DOC+DPF+EGR post-treatment technology is adopted, eliminating the need to burn urea.

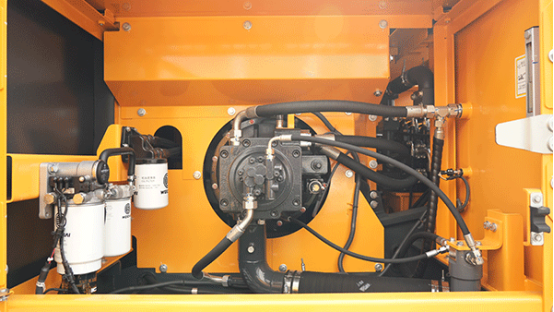

Equipped with a Large-Capacity Main Pump, it Enhances the Operation Speed
Hyundai customized positive flow electronically controlled hydraulic system, equipped with a large-capacity electronically controlled main pump, with the flow rate increased to 2*231L; The operation speed is faster and the efficiency is higher.

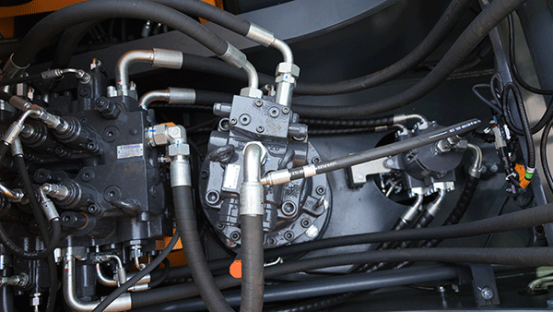

Brand-New Large-Diameter Main Control Valve
Hyundai custom hydraulic system, system pressure 350bar; The oil cylinder is thickened to provide greater digging force.

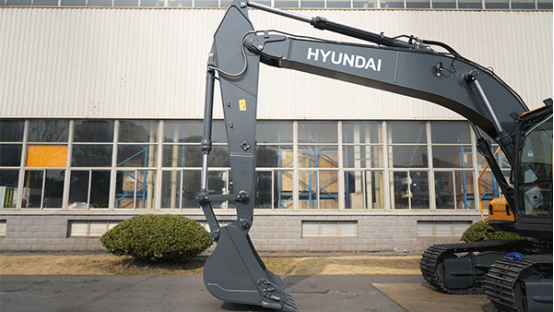

Expand the Scope of Work
The standard arm is 2.92 meters, and it is equipped with a 5.675 meter boom. Expand the scope of operations and improve the efficiency of loading operations.

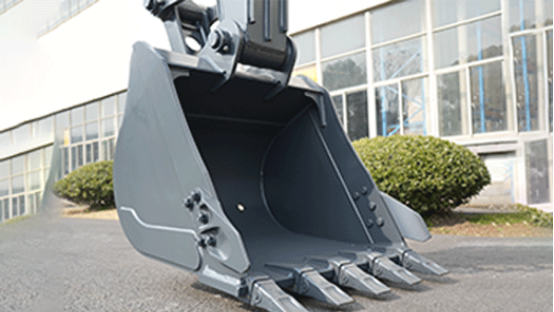

Standard Equipped with a 1.0m³ Large-Capacity Bucket
Reduce resistance, improve production efficiency, be more suitable for earthwork operations, and ensure that materials do not stick together during loading and unloading, making it convenient and efficient.

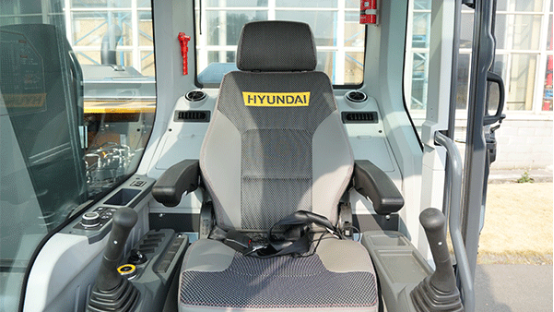

Intelligent Cab
Brand-new cab, standard with one-button start function, standard with entertainment facilities such as radio and Bluetooth; The large-sized LCD instrument panel makes driving easier. The floating seat and wider operation space at the front and back minimize operation fatigue and enhance the comfort of the cab.
