Operating Weight21.42 ton
Capacity0.87-1.2 m³
Rated Power110 kW/2000 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 21.42 ton |
Bucket Capacity | 0.87-1.2 m³ |
ENGINE
Emission | T2 |
Engine Model | 6BTAA-5.9 |
Rated Power | 110 kW/2000 rpm |
Max. Torque | 64 N.M/1300 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×234 l/min |
Implement Circuit (Power Boost) | 350 kgf/cm² |
PERFORMANCE
Swing Speed | 12.2 rpm |
Travel Speed | 5.7 km/3.5 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 21 ton |
Bucket Digging Force (ISO) | 15.2 ton |
Arm Digging Force (ISO) | 10.6 ton |
TANK CAPACITY
Fuel Tank | 340 ℓ |
Hydraulic Tank | 160 (275) ℓ |
DIMENSIONS
Overall Length | 9530 mm |
Overall Height | 3030 mm |
Overall Width | 2800 mm |
Tail Swing Radius | 2770 mm |
Ground Clearance | 470 mm |
WORKING RANGE
Boom Length | 5680 mm |
Arm Length | 2920 mm |
Max. Digging Reach | 9980 mm |
Max.Digging Depth | 6730 mm |
Max. Digging Height | 9600 mm |
Max. Dumping Height | 6780 mm |
Min. Swing Radius | 3670 mm |
FEATURES

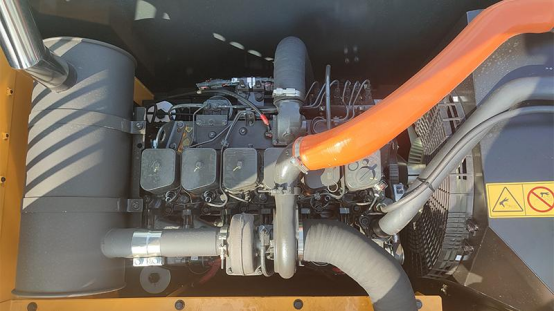

Hyundai 6BTAA-5.9 (HM5.9) Engine (Tier 2)
The 6-cylinder, turbocharged, 4-cycle, charger air cooled is built for power, reliability, economy, and low emissions.

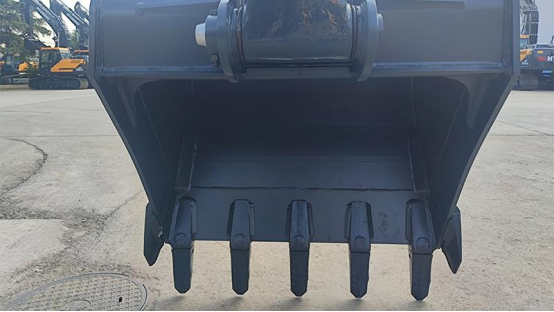

Reinforced Bucket and Bucket Linkage
Sealed and adjustable bucket linkage provides less wear of pins and bushes as well as silent operation. The design includes bucket link durability and anti wear characteristics. Additional reinforcement plates on cutting edge section. Reinforced bucket is made with thicker steel and additional lateral plate.

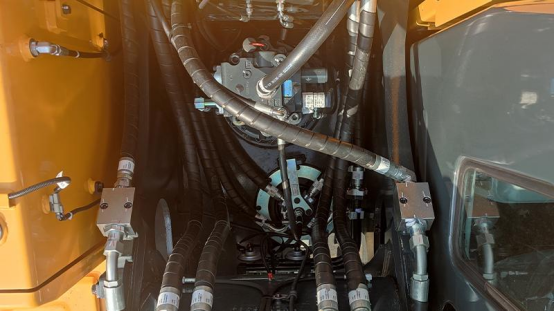

Powerful and Preciser Swing Control
Improved shock-absorbing characteristics ensure precise and smooth action.

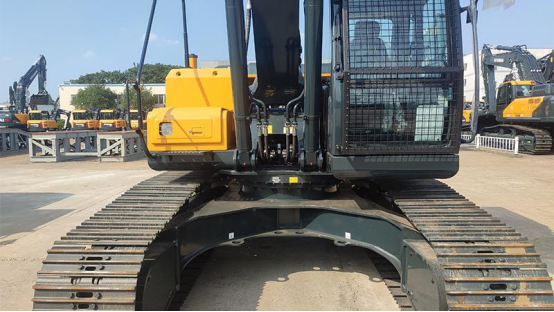

Robust and Stable Lower Frame
Welded reinforced box-type frame, low stress, high-strength steel. High-tensile strength steel plates, highly durable upper and lower rollers, and track guards ensure safety and resistance against external impacts when traveling on rough ground and working in damp conditions.

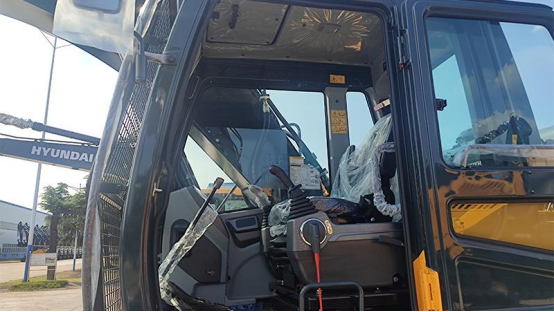

Wide Cab with Excellent Visibility
The cab is roomy and ergonomically designed with low noise level and good visibility. A full view front window and large rear and side windows provide excellent visibility in all directions.

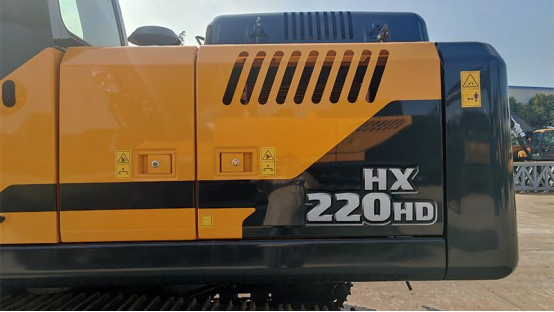

Side Cover with Left & Right Swing Open Type
Easy access to crucial components provides unrestricted viewing and allows easy maintenance and repairs.
