Operating Weight22.65 ton
Capacity1 m³
Rated Power125 kW/2000 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 22.65 ton |
Bucket Capacity | 1 m³ |
ENGINE
Emission | T4 |
Engine Model | B7 |
Rated Power | 125 kW/168 hp/170 ps/2000 rpm |
Max. Torque | 746 N.M/1200 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×234 l/min |
Implement Circuit (Power Boost) | 350(380) kgf/cm² |
PERFORMANCE
Swing Speed | 11.3 rpm |
Travel Speed | 5.5 km/3.6 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 22.6 ton |
Bucket Digging Force (ISO) | 15.4(16.7) ton |
Arm Digging Force (ISO) | 11.1(12.1) ton |
TANK CAPACITY
Fuel Tank | 395 ℓ |
Hydraulic Tank | 160(225) ℓ |
DIMENSIONS
Overall Length | 9560 mm |
Overall Height | 3130 mm |
Overall Width | 2990 mm |
Tail Swing Radius | 2890 mm |
Ground Clearance | 470 mm |
WORKING RANGE
Boom Length | 5680 mm |
Arm Length | 2920 mm |
Max. Digging Reach | 9935 mm |
Max.Digging Depth | 6740 mm |
Max. Digging Height | 9445 mm |
Max. Dumping Height | 6660 mm |
Min. Swing Radius | 3735 mm |
FEATURES

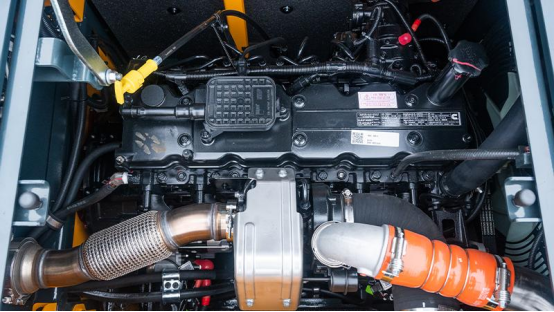

Cummins B7 Engine Complies with Tier 4 Emission Standards
Built on the reliable and proven B series platform, the Cummins B7 engine delivers strong power, easy maintenance, durability, extended maintenance intervals, and improved fuel efficiency, effectively saving operational costs. Using low-sulfur fuel, it employs DOC+DPF+SCR after-treatment technology for Tier 4 emission control, without EGR to prevent power loss.

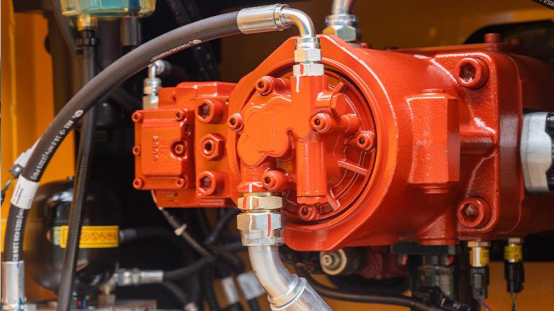

Imported Brand Electronic Control Main Pump
Ensuring quality and outstanding performance, with a large flow of 2×234 lpm. The electronic control main pump is equipped with the EPIC system, achieving energy efficiency, low consumption, and fast operation speed.

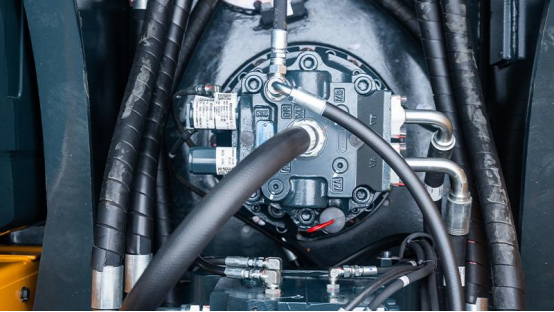

Hyundai In-House Rotation System for Enhanced Durability and Efficiency
Subjected to rigorous field tests totaling 10,000 hours, the in-house rotation system demonstrates exceptional durability and performance, with a notable 10% increase in efficiency.

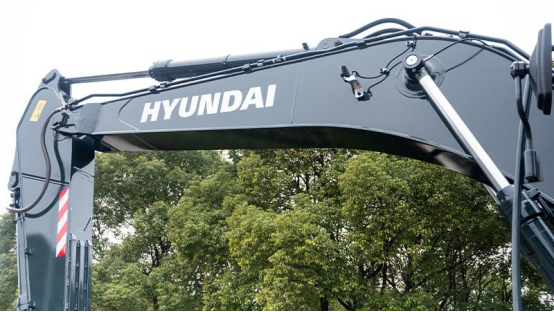

Heavy-Duty Working Device
Enhancing the durability and lifespan of the upper structure and working device. Improved flexibility, durability, and wear resistance of the bushings; Featuring a 5.68m heavy-duty boom, 2.92m heavy-duty arm, providing higher efficiency and a broader operational range.

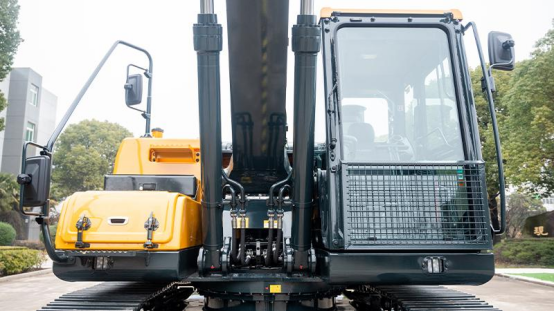

Enhanced Cab Safety
Equipped with a standard cab underguard, enhancing operational safety.

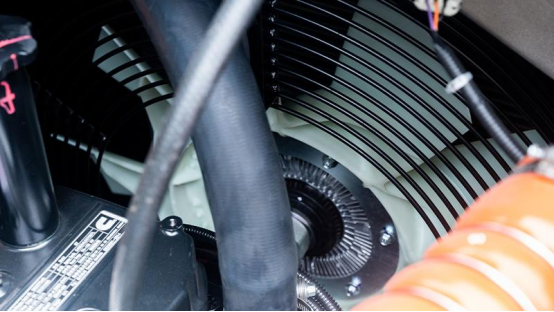

Electronic Clutch Fan
Automatically controls the engagement and disengagement of the fan clutch through a temperature sensor.
