Operating Weight26.8 ton
Capacity1.5 m³
Rated Power150 kW/2000 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 26.8 ton |
Bucket Capacity | 1.5 m³ |
ENGINE
Emission | T4 |
Engine Model | B7 |
Rated Power | 150 kW/201 hp/204 ps/2000 rpm |
Max. Torque | 890 N.M/1300 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×234 l/min |
Implement Circuit (Power Boost) | 350(380) kgf/cm² |
PERFORMANCE
Swing Speed | 10.93 rpm |
Travel Speed | 5.49 km/3.24 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 24 ton |
Bucket Digging Force (ISO) | 16.9(18.4) ton |
Arm Digging Force (ISO) | 12.5(13.5) ton |
TANK CAPACITY
Fuel Tank | 450 ℓ |
Hydraulic Tank | 160(275) ℓ |
DIMENSIONS
Overall Length | 10050 mm |
Overall Height | 3390 mm |
Overall Width | 3180 mm |
Tail Swing Radius | 3085 mm |
Ground Clearance | 480 mm |
WORKING RANGE
Boom Length | 5850 mm |
Arm Length | 2850 mm |
Max. Digging Reach | 10280 mm |
Max.Digging Depth | 6910 mm |
Max. Digging Height | 10260 mm |
Max. Dumping Height | 6940 mm |
Min. Swing Radius | 3550 mm |
FEATURES

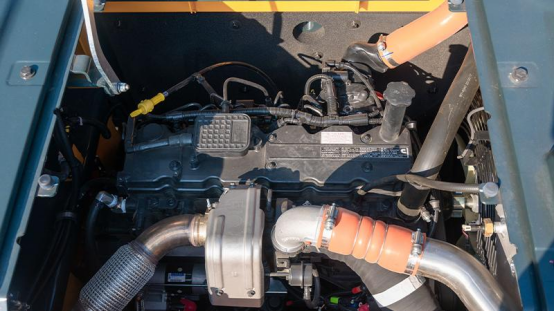

Cummins B7 Engine Complies with Tier 4 Emission Standards
Built on the reliable and proven B series platform, the Cummins B7 engine delivers strong power, easy maintenance, durability, extended maintenance intervals, and improved fuel efficiency, effectively saving operational costs. Using low-sulfur fuel, it employs DOC+DPF+SCR after-treatment technology for Tier 4 emission control, without EGR to prevent power loss.

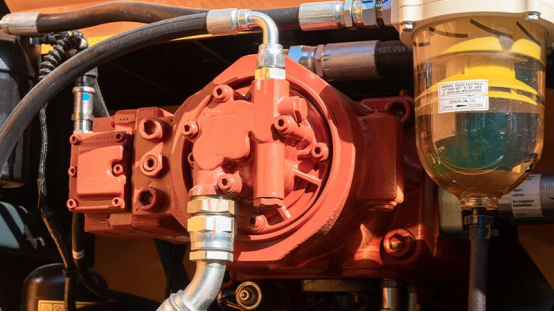

Adopts imported brand electronic control main pump for quality assurance and superior performance
With a large flow of 2×234 lpm, the electronic control main pump is equipped with the EPIC system, achieving energy efficiency and high operation speed.

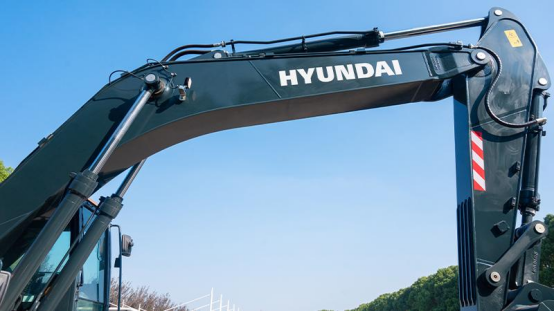

Heavy-Duty Working Device
Enhancing the durability and lifespan of the upper structure and working device. Improved flexibility, durability, and wear resistance of the bushings; Featuring a 5.85m heavy-duty boom, 2.85m standard arm, providing higher efficiency and a broader operational range.

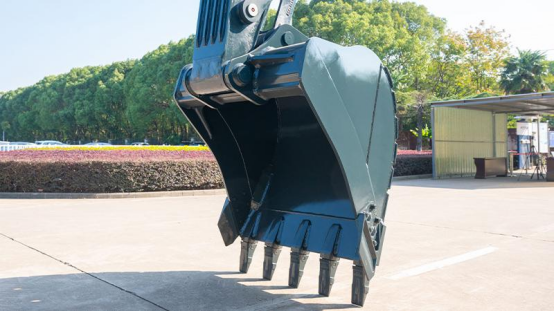

Exemplary Loading, Specially Designed for Earthwork
Equipped with a standard large-capacity, wide and shallow earthmoving bucket: 1.5m³, excellent for loading and dumping operations.

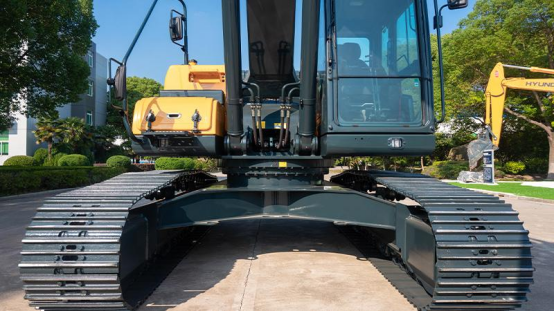

Triple Grousers Shoes
Enhancing loading stability, equipped with standard triple grousers shoes, suitable for muddy terrain, providing excellent traction.

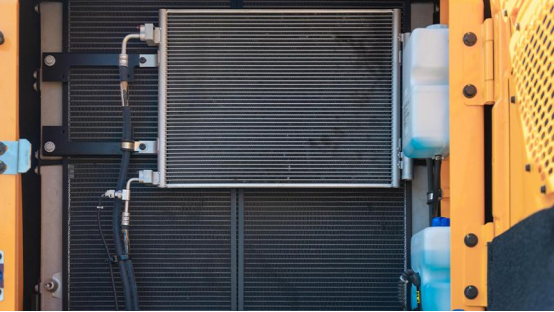

Enhanced Cooling Performance
The radiator assembly has been upgraded from a series configuration to a parallel configuration, resulting in better cooling performance.
