Operating Weight30.2 ton
Capacity1.27 m³
Rated Power194 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 30.2 ton |
Bucket Capacity | 1.27 m³ |
ENGINE
Emission | T2 |
Engine Model | HM8.3 |
Rated Power | 194 kW/2200 rpm |
Max. Torque | 1150 N.M/1300 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×285 l/min |
Implement Circuit (Power Boost) | 350 kgf/cm² |
PERFORMANCE
Swing Speed | 12.2 rpm |
Travel Speed | 6.1 km/3.4 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 27.4 ton |
Bucket Digging Force (ISO) | 19.2 ton |
Arm Digging Force (ISO) | 13.6 ton |
TANK CAPACITY
Fuel Tank | 500 ℓ |
Hydraulic Tank | 190 (330) ℓ |
DIMENSIONS
Overall Length | 10590 mm |
Overall Height | 3320 mm |
Overall Width | 3470 mm |
Tail Swing Radius | 3345 mm |
Ground Clearance | 765 mm |
WORKING RANGE
Boom Length | 6250 mm |
Arm Length | 3050 mm |
Max. Digging Reach | 10810 mm |
Max.Digging Depth | 7010 mm |
Max. Digging Height | 10520 mm |
Max. Dumping Height | 7470 mm |
Min. Swing Radius | 4270 mm |
FEATURES
Fuel-Efficient System, Outstanding Performance
The HX series features environmentally friendly, high-performance engines that ensure excellent fuel efficiency and high power. Rigorous testing in various work environments has demonstrated its outstanding operational performance. It will satisfy any customer's needs.

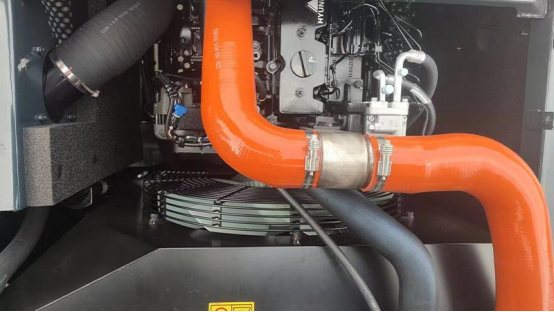

New Cooling System with Increased Airflow
The cooling module of the HX series enhances air intake, providing excellent cooling performance by increasing heat dissipation.

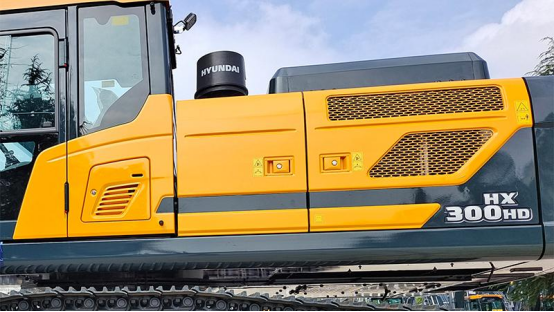

Enlarged Air Inlet with Grille Cover
The vent holes of side covers and fine-mesh grilles are enlarged to prevent foreign object penetration, further enhancing durability.

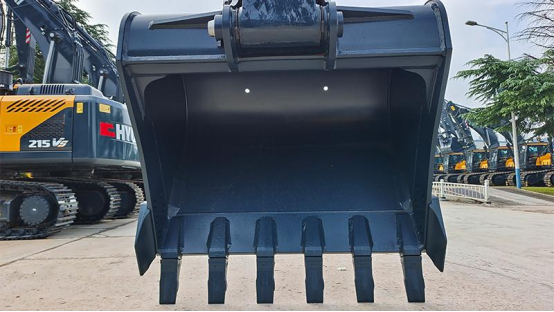

Reinforced Durability of Upper and Lower Structures and Attachments
The upper and lower structures and attachments of the HX series exhibit higher durability than on-site requirements, proven through extensive testing including road tests and virtual simulations. The use of new materials has improved the wear resistance of the bucket.

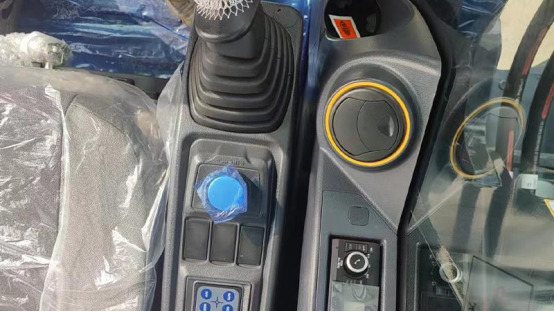

Improved Dashboard for Enhanced Monitoring

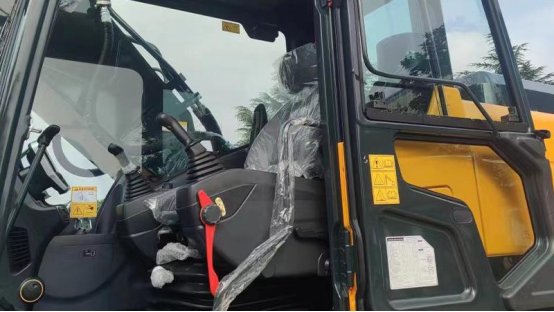

Many electronic functions are centralized in the most convenient location for operators to improve operational efficiency. The highly advanced infotainment system is a product of HCE's intensive information technology development, enhancing productivity and comfort during work. The design of the HX series takes the operator into consideration.

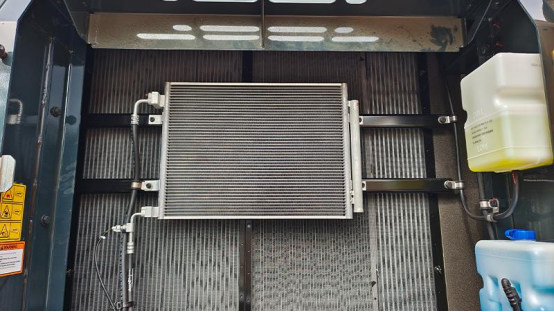

New Front Air Conditioning System
Ventilation design delivers warm and cool air to the operator's face. It helps operators create a neater and more pleasant atmosphere through indoor air circulation.
