Operating Weight37.8 ton
Capacity1.9 m³ (HD)
Rated Power254 kW/1900 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 37.8 ton |
Bucket Capacity | 1.9 m³ (HD) |
ENGINE
Emission | T4 |
Engine Model | L9 |
Rated Power | 254 kW/341 hp/346 ps/1900 rpm |
Max. Torque | 1520 N.M/1100～1400 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×333 l/min |
Implement Circuit (Power Boost) | 350 kgf/cm² |
PERFORMANCE
Swing Speed | 9.83 rpm |
Travel Speed | 5.12 km/3.21 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 35.3 ton |
Bucket Digging Force (ISO) | 23 ton |
Arm Digging Force (ISO) | 19 ton |
TANK CAPACITY
Fuel Tank | 585 ℓ |
Hydraulic Tank | 210(414) ℓ |
DIMENSIONS
Overall Length | 11415 mm |
Overall Height | 3915 mm |
Overall Width | 3190 mm |
Tail Swing Radius | 3620 mm |
Ground Clearance | 530 mm |
WORKING RANGE
Boom Length | 6500 mm |
Arm Length | 2800 mm |
Max. Digging Reach | 10950 mm |
Max.Digging Depth | 6940 mm |
Max. Digging Height | 10750 mm |
Max. Dumping Height | 7620 mm |
Min. Swing Radius | 4345 mm |
FEATURES

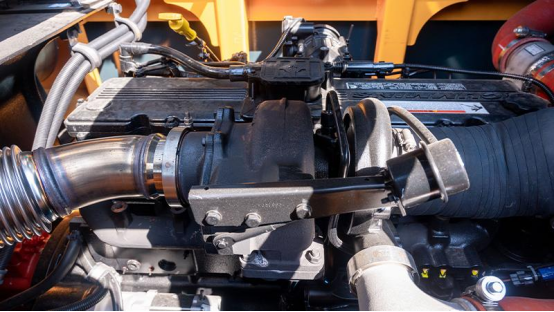

Cummins L9 Engine Complies with Tier 4 Emission Standards
Built on the proven and reliable L Series platform, the Cummins L9 engine boasts powerful performance, convenient maintenance, long-lasting durability, extended maintenance intervals, and improved fuel efficiency. These features contribute to effective cost savings for customers. The engine utilizes low-sulfur fuel and employs DOC+DPF+SCR technology for Tier 4 emission control, without EGR to prevent power loss.

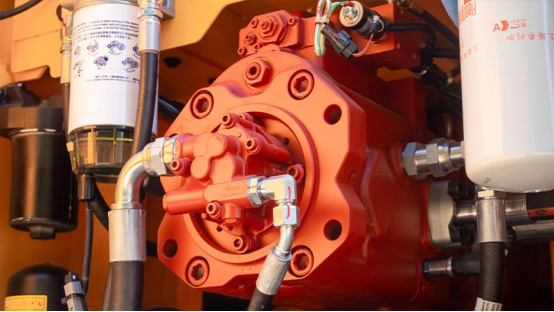

Imported Brand Electronic Control Main Pump
Ensuring quality and superior performance, the main pump has a large flow rate of 2*333 lpm. Equipped with the EPIC system, the electronic control main pump achieves energy efficiency, low consumption, and high operational speed.

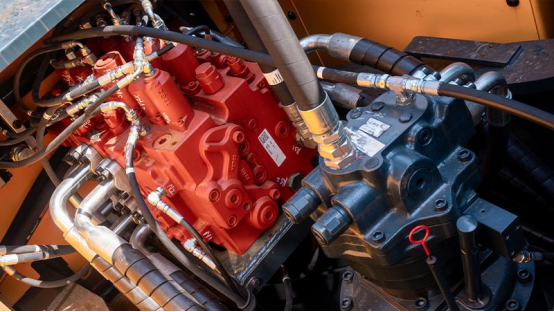

Hyundai In-House Rotation System for Enhanced Durability and Efficiency
Subjected to rigorous field tests totaling 10,000 hours, the in-house rotation system demonstrates exceptional durability and performance, with a notable 10% increase in efficiency.

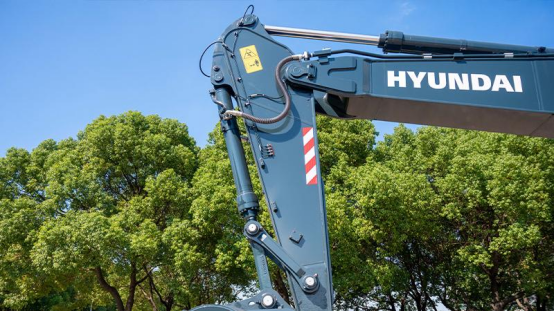

Heavy-Duty Working Device
Enhancing the durability and lifespan of the upper structure and working device. Improved tflexibility, durability, and wear resistance of the bushings: 6.5m heavy-duty boom, 2.8m standard arm, 1.9m³ high-capacity heavy-duty bucket, ensuring excellent compatibility.

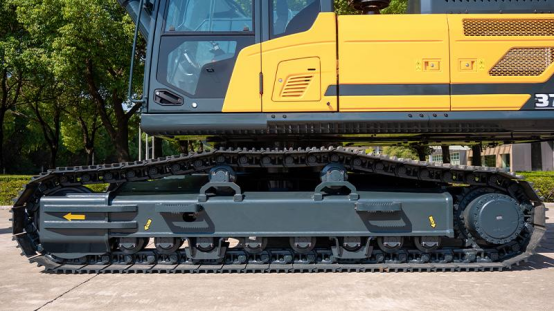

Double-sided Carrier Rollers
With 600mm triple grouser shoes, double-sided carrier rollers, and reinforced crawler guard plates, it confidently handles earthwork and rock conditions.

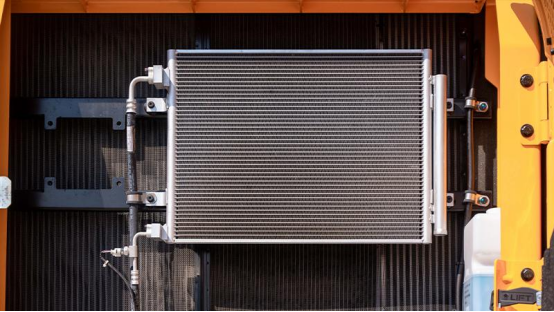

Enhanced Radiator Assembly
With a modified radiator arrangement that enlarges the contact area, effectively improving heat dissipation performance.
