Operating Weight33 ton
Capacity1.44 m³
Rated Power194 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 33 ton |
Bucket Capacity | 1.44 m³ |
ENGINE
Emission | T2 |
Engine Model | HM8.3 |
Rated Power | 194 kW/2200 rpm |
Max. Torque | 1150 N.M/1300 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×306 l/min |
Implement Circuit (Power Boost) | 350 kgf/cm² |
PERFORMANCE
Swing Speed | 11.2 rpm |
Travel Speed | 6.4 km/3.6 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 29.5 ton |
Bucket Digging Force (ISO) | 21.6 ton |
Arm Digging Force (ISO) | 14.5 ton |
TANK CAPACITY
Fuel Tank | 600 ℓ |
Hydraulic Tank | 210 (414) ℓ |
DIMENSIONS
Overall Length | 11220 mm |
Overall Height | 3360 mm |
Overall Width | 3280 mm |
Tail Swing Radius | 3570 mm |
Ground Clearance | 500 mm |
WORKING RANGE
Boom Length | 6450 mm |
Arm Length | 3200 mm |
Max. Digging Reach | 11150 mm |
Max.Digging Depth | 7360 mm |
Max. Digging Height | 10360 mm |
Max. Dumping Height | 7260 mm |
Min. Swing Radius | 4360 mm |
FEATURES

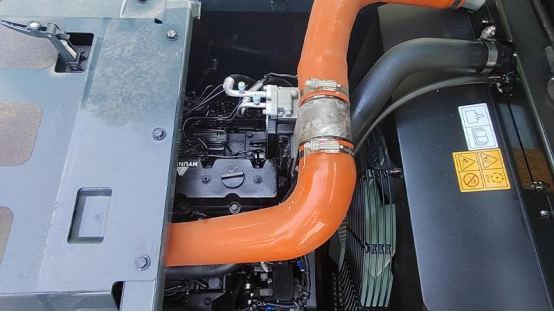

Fuel-Efficient System, Outstanding Performance
The HX series features environmentally friendly, high-performance engines that ensure excellent fuel efficiency and high power. Rigorous testing in various work environments has demonstrated its outstanding operational performance. It will satisfy any customer's needs.

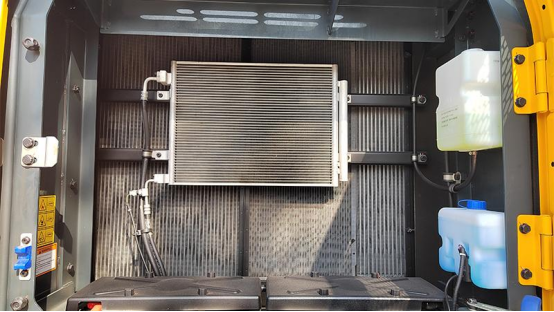

New Cooling System with Increased Airflow
The cooling module of the HX series enhances air intake, providing excellent cooling performance by increasing heat dissipation.

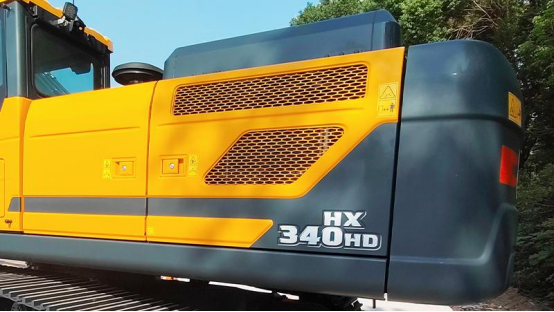

Enlarged Air Inlet with Grille Cover
The vent holes of side covers and fine-mesh grilles are enlarged to prevent foreign object penetration, further enhancing durability.
Reinforced Durability of Upper and Lower Structures and Attachments

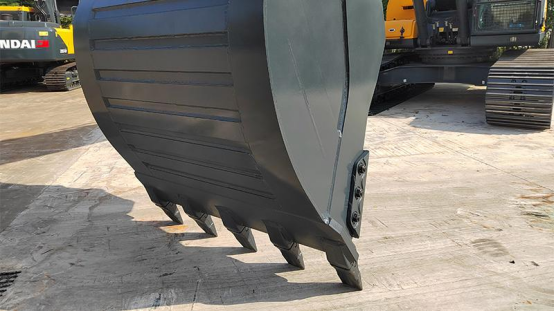

The upper and lower structures and attachments of the HX series exhibit higher durability than on-site requirements, proven through extensive testing including road tests and virtual simulations. The use of new materials has improved the wear resistance of the bucket.

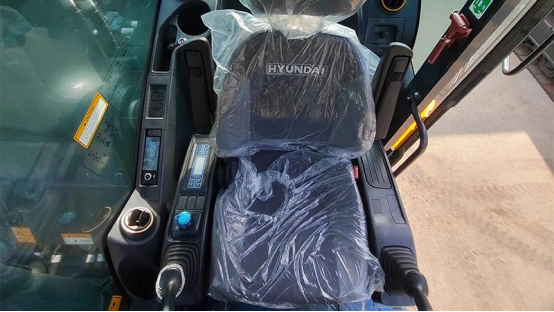

Improved Dashboard for Enhanced Monitoring
Many electronic functions are centralized in the most convenient location for operators to improve operational efficiency. The highly advanced infotainment system is a product of HCE's intensive information technology development, enhancing productivity and comfort during work. The design of the HX series takes the operator into consideration.
New Exterior Design for Robustness and Safety
The true value of the HX series lies in its durability. The robust frame structure and attachments demonstrate the HX series' real value in challenging work environments and with the potential to enhance productivity.
