Operating Weight41.3 ton
Capacity1.9 m³ (ROCK)
Rated Power254 kW/1900 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 41.3 ton |
Bucket Capacity | 1.9 m³ (ROCK) |
ENGINE
Emission | T4 |
Engine Model | L9 |
Rated Power | 254 kW/341 hp/346 ps/1900 rpm |
Max. Torque | 1520 N.M/1100～1400 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×333 l/min |
Implement Circuit (Power Boost) | 350 kgf/cm² |
PERFORMANCE
Swing Speed | 9.83 rpm |
Travel Speed | 5.12 km/3.21 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 35.3 ton |
Bucket Digging Force (ISO) | 24.7 ton |
Arm Digging Force (ISO) | 19.7 ton |
TANK CAPACITY
Fuel Tank | 585 ℓ |
Hydraulic Tank | 210(414) ℓ |
DIMENSIONS
Overall Length | 11410 mm |
Overall Height | 3775 mm |
Overall Width | 3340 mm |
Tail Swing Radius | 3620 mm |
Ground Clearance | 570 mm |
WORKING RANGE
Boom Length | 6500 mm |
Arm Length | 2800 mm |
Max. Digging Reach | 10950 mm |
Max.Digging Depth | 6910 mm |
Max. Digging Height | 10780 mm |
Max. Dumping Height | 7650 mm |
Min. Swing Radius | 4345 mm |
FEATURES
Cummins L9 Engine Complies with Tier 4 Emission Standards
Built on the proven and reliable L Series platform, the Cummins L9 engine boasts powerful performance, convenient maintenance, long-lasting durability, extended maintenance intervals, and improved fuel efficiency. These features contribute to effective cost savings for customers. The engine utilizes low-sulfur fuel and employs DOC+DPF+SCR technology for Tier 4 emission control, without EGR to prevent power loss.
Imported Brand Electronic Control Main Pump
Ensuring quality and superior performance, the main pump has a large flow rate of 2*333 lpm. Equipped with the EPIC system, the electronic control main pump achieves energy efficiency, low consumption, and high operational speed.

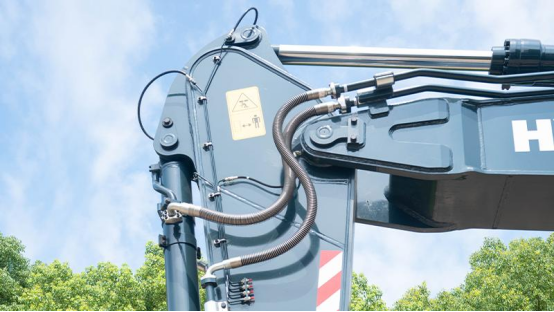

Heavy-Duty Working Device
Enhancing the durability and lifespan of the upper structure and working device. Improved tflexibility, durability, and wear resistance of the bushings: 6.5m heavy-duty boom, 2.8m standard arm, 1.9m³ rock bucket, standard original breaking pipelines, ensuring excellent compatibility.

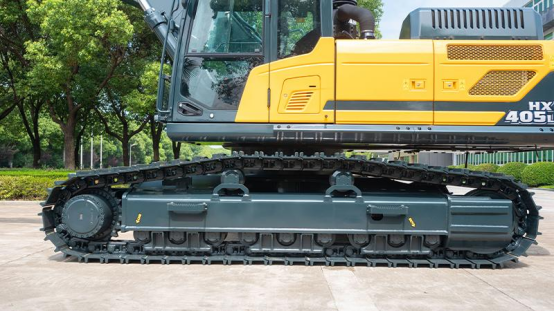

Specialized Mining Chassis
Featuring 600mm double grousers shoes, double-sided carrier rollers, full protective guard rails, confronting the harsh challenges of mining environments.

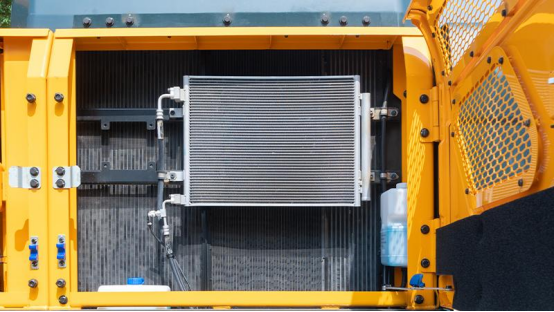

Enhanced Radiator Assembly
With a modified radiator arrangement that enlarges the contact area, effectively improving heat dissipation performance.

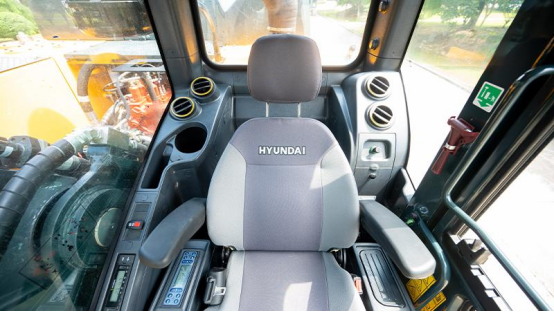

Brand-new HX Series Multi-functional Cab
The new high-security HX Series cab offers a pleasurable control experience with features such as one-key idle, automatic idle, one-key emergency stop, bluetooth, USB and more. With a broader field of view and spacious interior, operators enjoy sufficient visibility and foresight for surrounding environments and construction operations. The ergonomically designed advanced suspension seat, high-capacity and efficient air conditioning, improved cab sealing, and reduced noise contribute to alleviating operator fatigue and enhancing operational efficiency.
