Operating Weight51.9 ton
Capacity2.79 m³ (ROCK)
Rated Power280 kW/2100 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 51.9 ton |
Bucket Capacity | 2.79 m³ (ROCK) |
ENGINE
Emission | CS4 |
Engine Model | X12 |
Rated Power | 280 kW/375 hp/381 ps/2100 rpm |
Max. Torque | 1966 N.M/1400 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2×390 l/min |
Implement Circuit (Power Boost) | 330(360) kgf/cm² |
PERFORMANCE
Swing Speed | 9 rpm |
Travel Speed | 5.2 km/3.3 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 42.8 ton |
Bucket Digging Force (ISO) | 28.42(31.00) ton |
Arm Digging Force (ISO) | 23.27(25.38) ton |
TANK CAPACITY
Fuel Tank | 605 ℓ |
Hydraulic Tank | 300(560) ℓ |
DIMENSIONS
Overall Length | 11700 mm |
Overall Height | 3940 mm |
Overall Width | 3400 mm |
Tail Swing Radius | 3745 mm |
Ground Clearance | 590 mm |
WORKING RANGE
Boom Length | 6550 mm |
Arm Length | 2900 mm |
Max. Digging Reach | 11120 mm |
Max.Digging Depth | 6800 mm |
Max. Digging Height | 10560 mm |
Max. Dumping Height | 7240 mm |
Min. Swing Radius | 4485 mm |
FEATURES

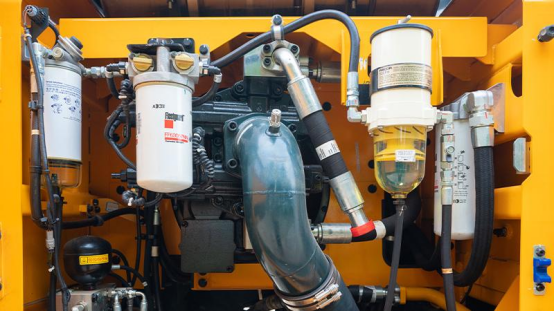

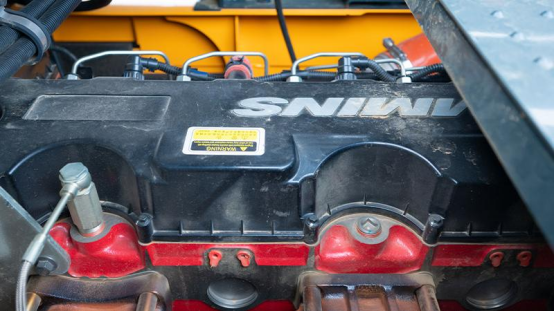

Cummins X12 Engine Complies with Tier 4 Emission Standards
The Cummins X12 delivers robust power, convenient maintenance, long-lasting durability, extended maintenance intervals, higher fuel efficiency, and effective cost savings for customer operations. Utilizing low-sulfur fuel and employing DOC+DPF+SCR post-treatment technology for Tier 4 emission control, the engine eliminates EGR, preventing power losses.

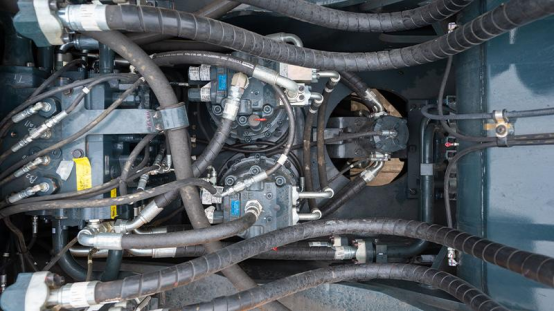

Equipped with a Rexroth high-capacity hydraulic pump
Featuring an original imported Rexroth high-capacity hydraulic pump with optimized main pump structure and integrated EPIC system, the system improves operational efficiency while achieving fuel savings.

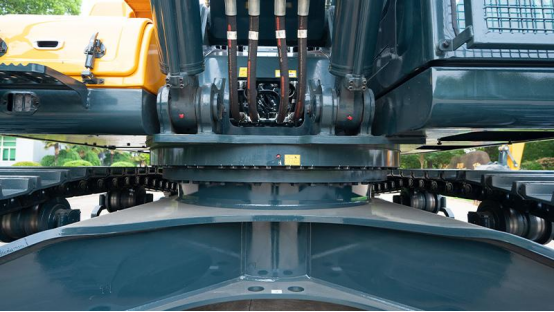

Proven HCE Main Control Valve and Dual Rotary Motors
The main control valve includes a one-key boost function, providing instantaneous boost of 330(360) bar during heavy load for greater digging force, suitable for various earthworking conditions.

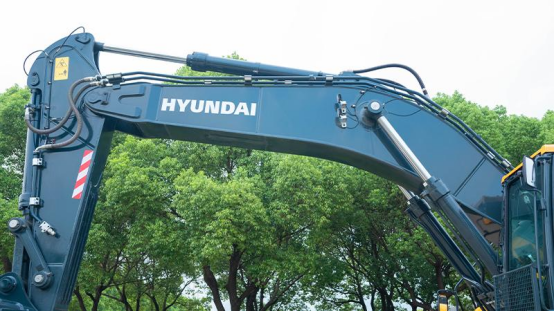

Heavy-Duty Working Device
Enhancing the durability and lifespan of the upper structure and working device. Improved tflexibility, durability, and wear resistance of the bushings. 6.55m heavy-duty boom, 2.9m arm, 2.79m³ rock bucket, ensuring excellent compatibility.
Hi-Grade Hydraulic Hoses (Significant Improvement in Heat Resistance and Durability)
Compared to regular hydraulic hoses, the lifecycle of Hi-Grade hydraulic hoses has been increased by 3-4 times, leading in improved reliability for excavators.

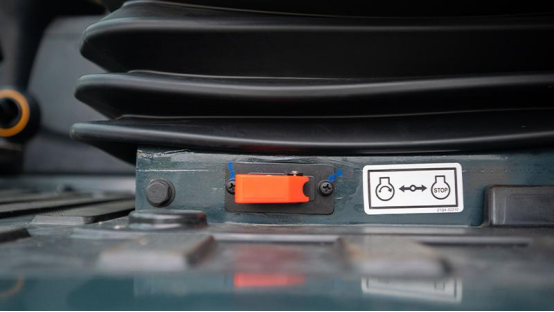

One-key Emergency Stop
The one-key emergency stop significantly enhances safety.
