Operating Weight6.8 ton
Capacity0.3 m³
Total engine55.8 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 6.8 ton |
Bucket Capacity | 0.3 m³ (optional) |
Total Engine | 55.8 kW/2200 rpm |
ENGINE
Emission | T4 |
Engine Model | YCF3075-T480 |
Power | 55.8 kW/2200 rpm |
The Engine Layout Form | Horizontal layout |
Transmission Form | Hydraulic motor driver (manual/automatic optional) |
HYDRAULIC
Main Pumps Rated Flow | 150 l/min |
Form | Load sensitive pump |
PERFORMANCE
Swing Speed | 10.5 rpm |
Driving Speed | 35 km/hr |
Largest Traction | 45 kn |
Fighting Excavation | 35 kn |

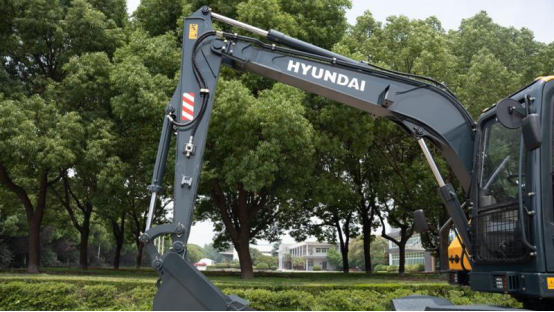

WORKING EQUIPMENT
Big Arm Length | 3400 mm |
Arm Length | 1900 mm |
Bucket Capacity | 0.3 m³ |
Wheelbudie | 1680 mm |
Wheelbase | 3400 mm |
FEATURES

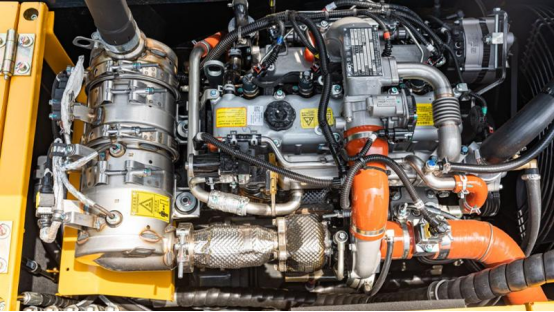

Engine
Utilizing a renowned brand engine, it delivers approximately 16% more power than equipment in the same class. With enhanced power, it meets the requirements of tier 4 emission standard without the need for urea, resulting in lower operating costs.

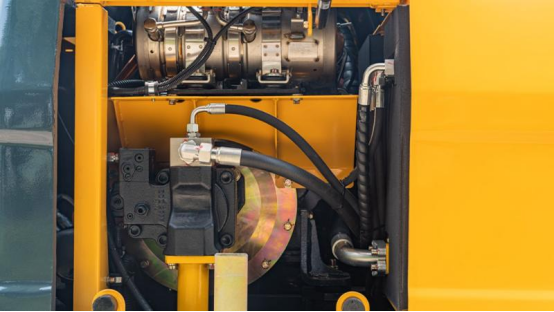

Pump Valve
Incorporating well-known brand pump valves and equipped with the LS load-sensitive system, it ensures smooth compound actions and lower fuel consumption.

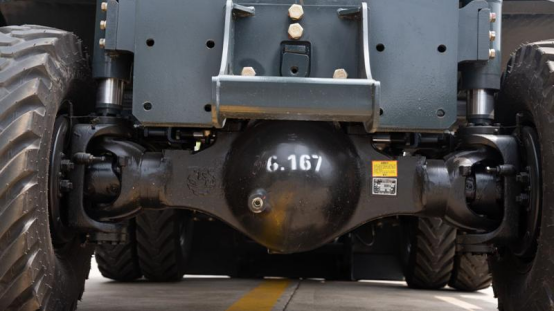

Axle Box
Utilizing a time-tested brand of axle box, it achieves higher walking speed and superior performance.

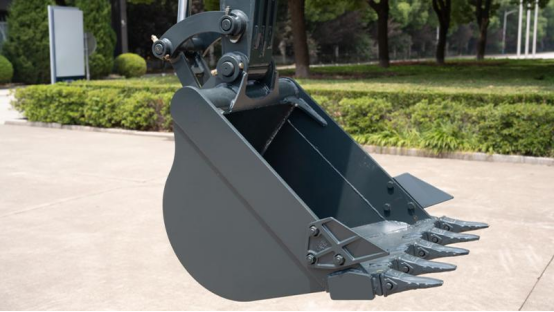

Bucket
Equipped with a 0.3m³ bucket, the largest in its class, ensuring higher operational efficiency.
Pipelines
Standard with a breaking pipeline, meeting various operational requirements for better compatibility; equipped with lifting lugs, facilitating hoisting operations.

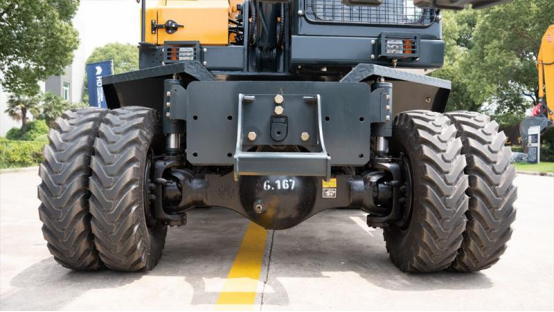

Dual Tires
Designed with dual tires, the equipment has a heavier body and wider lower structure compared to equipment in the same class. This design enhances stability during slope and hoisting operations, providing increased lifting force.
