Operating weight(Kg): 4200
Rated power(kW/rpm): 18.2
Engine model(-): Yanmr 3TNV88F

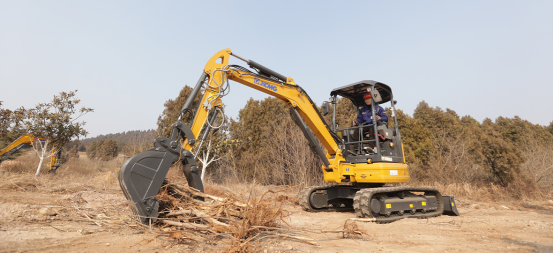

The XE35U comes with every feature you expect from a mini excavator in its tonnage.
Variable angle boom, 75° to the left and 50° to the right, and zero swing tail give you an edge when undertaking operations wherever space is confined.
Powered by a reliable 24.4 hp YANMAR engine, you can count on it to finish tough jobs in various operating conditions. When it comes to efficiency, versatility is a critical factor. That's why the machine is compatible to multiple attachments that can be installed within a short period of time with its hydraulic quick coupler. You will make full use of every second in the jobsite.
PARAMETERS
ItemUnitParameter
Operating weightKg4200
Rated powerkW/rpm18.2
Engine model-Yanmr 3TNV88F
Bucket capacitym³0.12
Emission standard-Tier 4 Final
Maximum torque/speedN.m85.3-94.2/1320
DisplacementL1.642
Travel speedkm/h3.6/2.2
Swing speedr/min9
Bucket digging forcekN28.6
Arm digging forcekN20.3
