Operating Weight9.4 ton
Capacity0.3 m³ (optional)
Total engine74 kW/2200 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 9.4 ton |
Bucket Capacity | 0.3 m³ (optional) |
Total Engine | 74 kW/2200 rpm |
ENGINE
Emission | T4 |
Engine Model | YCF36100-T480 |
Power | 72 kW/2200 rpm |
The Engine Layout Form | Vertical |
Transmission Form | Mechanical shifting |
HYDRAULIC
Main Pumps Rated Flow | 180 l/min |
Form | Load sensitive pump |
PERFORMANCE
Swing Speed | 10.5 rpm |
Driving Speed | 29 km/hr |
Largest Traction | 57 kn |
Fighting Excavation | - |
WORKING EQUIPMENT
Big Arm Length | 4000 mm |
Arm Length | 2100 mm |
Bucket Capacity | 0.3 m³ (optional) |
Wheelbudie | 1758 mm |
Wheelbase | 2500 mm |
FEATURES

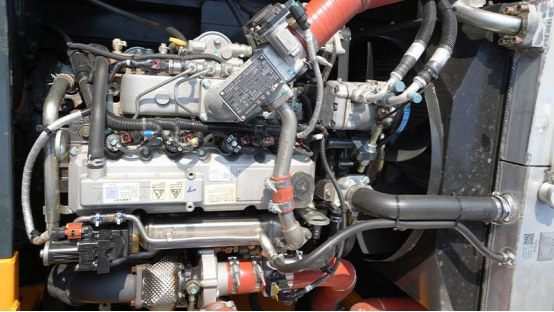

Engine
Powered by a robust Tier 4 emission-compliant system with 74 kW output, providing stronger and more durable performance; equipped with LS load-sensitive system for improved fuel efficiency.

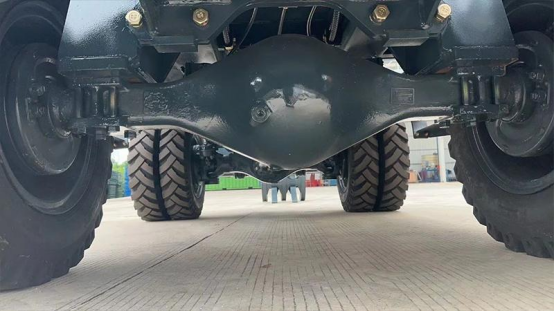

Reduction Axle
Utilizing a Lian Sheng wheel-side reduction axle for stability and reliability, ensuring outstanding travel performance.

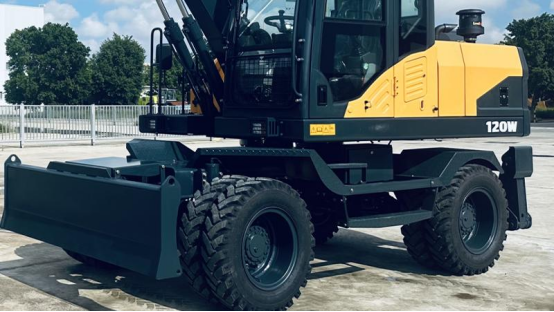

Dual Tires
Designed with dual tires, offering a heavier body compared to equipment in the same class, ensuring more stable operations.

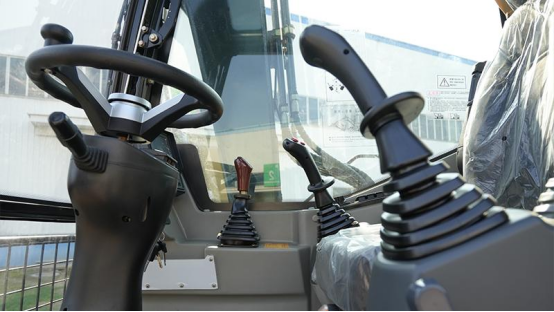

Cabin
Equipped with a suspended seat, openable front windshield and sunroof, and sun visors for the front and right sides.

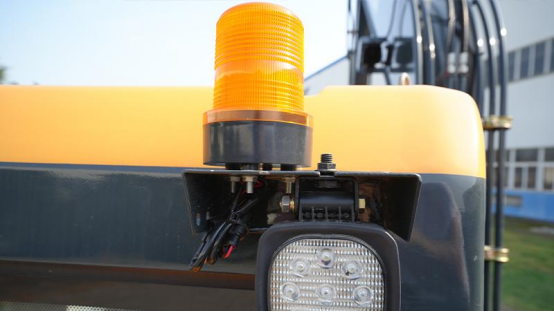

Cameras and Warning Lights
Standard front and rear cameras, along with operational warning lights.

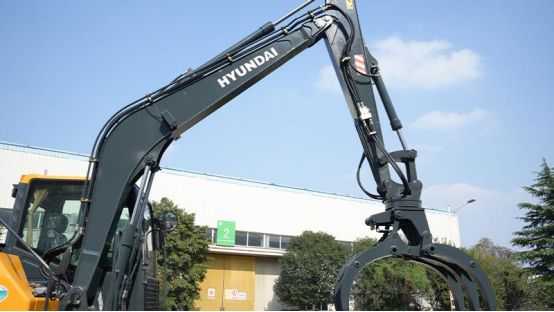

Standard Breaking Pipeline
Includes a standard gripping clamp, breaking pipeline, suitable for various working conditions.
