Operating Weight21.92 ton
Capacity1 m³
Rated Power150 kW/2000 rpm
SPECIFICATIONS
GENERAL
Operating Weight | 21.92 ton |
Bucket Capacity | 1 m³ |
ENGINE
Emission | T4 |
Engine Model | B7 |
Rated Power | 150 kW/2000 rpm |
Max. Torque | 91(890) N.M/1300 rpm |
HYDRAULIC
Main Pumps Rated Flow | 2*221/1700 l/min |
Implement Circuit (Power Boost) | 350(380) kgf/cm² |
PERFORMANCE
Swing Speed | 10.8 rpm |
Travel Speed | 9.3 km/35.5 hr |
Max. Gradeability | 35 deg |
Max. Traction Force | 11.1 ton |
Bucket Digging Force (ISO) | 15.47(16.8) ton |
Arm Digging Force (ISO) | 10.92(11.85) ton |
TANK CAPACITY
Fuel Tank | 310 ℓ |
Hydraulic Tank | 165 ℓ |
DIMENSIONS
Overall Length | 9470 mm |
Overall Height | 3510 mm |
Overall Width | 2530 mm |
Tail Swing Radius | 2735 mm |
Ground Clearance | 360 mm |
WORKING RANGE
Boom Length | 5650 mm |
Arm Length | 2920 mm |
Max. Digging Reach | 9980 mm |
Max.Digging Depth | 6410 mm |
Max. Digging Height | 10000 mm |
Max. Dumping Height | 7130 mm |
Min. Swing Radius | 3400 mm |
FEATURES

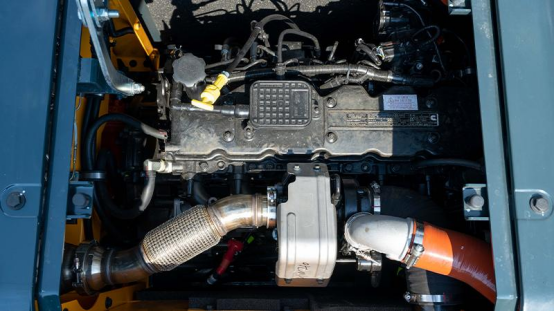

Cummins B7 Engine Complies with Tier 4 Emission Standards
Built on the reliable and proven B series platform, the Cummins B7 engine delivers strong power, easy maintenance, durability, extended maintenance intervals, and improved fuel efficiency, effectively saving operational costs. Using low-sulfur fuel, it employs DOC+DPF+SCR after-treatment technology for Tier 4 emission control, without EGR to prevent power loss.

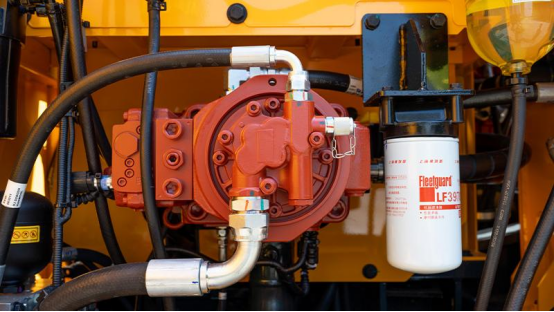

Kawasaki Electronic Control Main Pump
Ensuring quality and superior performance, the main pump with EPFC system increases flow, achieving energy efficiency and high operational speed.

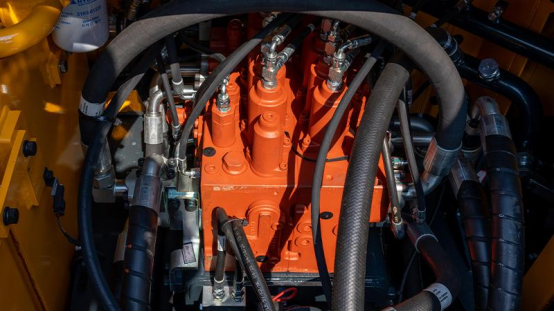

Imported Brand Main Control Valve
Featuring a one-key boost function, providing instant pressure boost of 350 (380) bar under heavy load for greater digging force, suitable for various earthworking conditions.

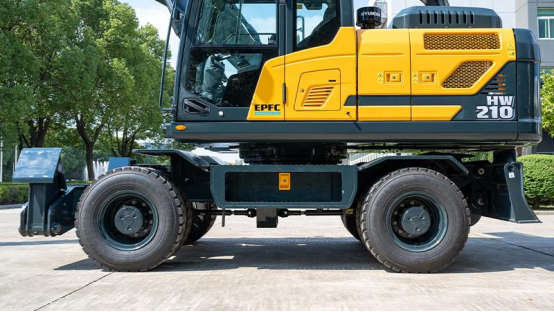

Outstanding Driving Performance
Utilizing the well-proven and highly recognized ZF axles and transmission in the market.
Standard cruise control function facilitates long-distance driving, allowing the driver to engage cruise control with one touch, freeing both feet and alleviating driving fatigue.

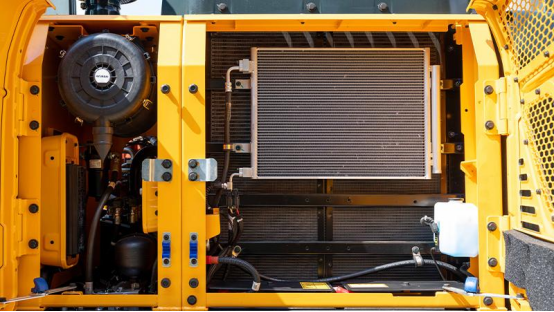

Enhanced Cooling Capability
Optimized cooling system significantly improves heat dissipation, enhancing equipment performance.

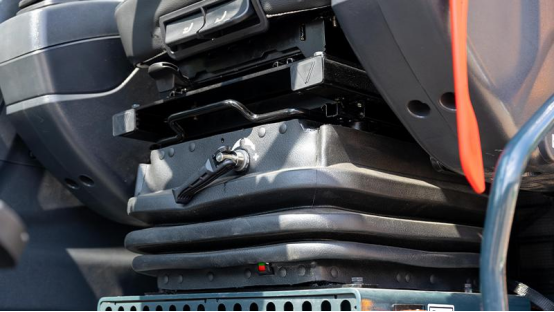

Standard Emergency Stop Switch
A one-key emergency stop switch is located below the seat, allowing for emergency operations without entering the cab, ensuring the safety of personnel and equipment.
